| Brand Name: | HSTECH |
| Model Number: | HS-C1500 |
| MOQ: | 3 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |

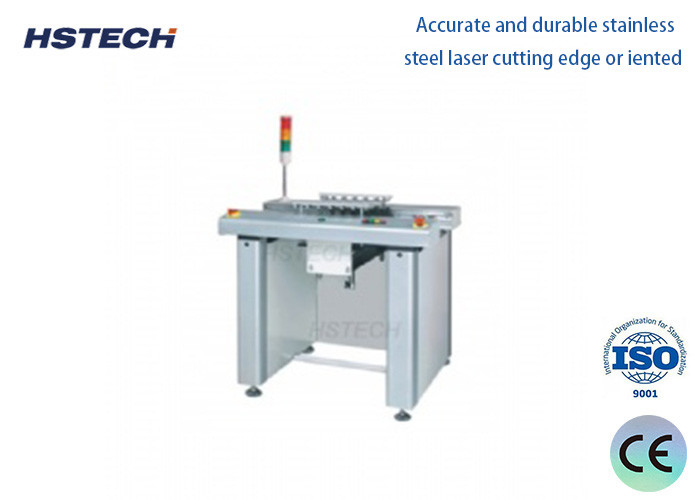

1500mm Length Aluminum Alloy PCB Conveyor with SMEMA Signal for SMT Line
Features
1. It has detection function and a separate control button.
2. The length is 1500mm, and the width is adjusted to 390mm.
3. Adjust the transportation speed through the knob.
4. ESD green workbench.
5. Aluminum alloy transportation guide rail.

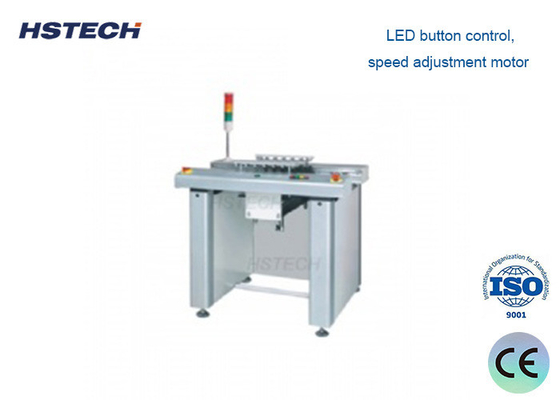

6. LED button control, motor speed regulation.
7. Optional features include tower lights, inspection, dust cover, etc.
8. Customizable requirements.
9. Available in length, 600mm, 1000mm, 1500mm or optional.
10. SMEMA signals are used for online connections.
Specification
| Model | HS-C1500/HS-C1500S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
