| Brand Name: | HSTECH |
| Model Number: | HS-DS400 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

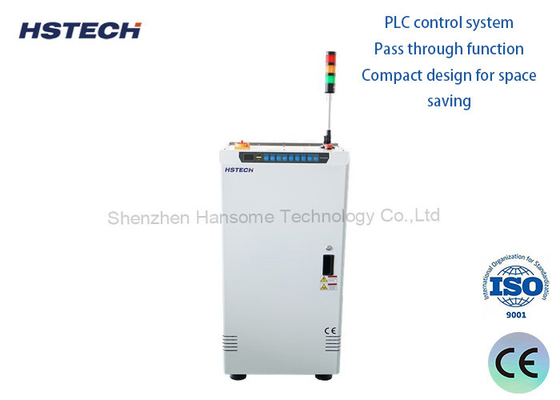

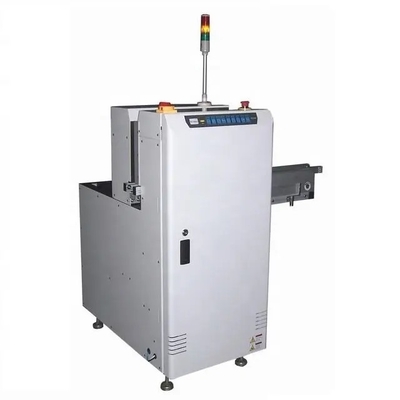

Independent Intellectual Property Rights HS-DS400/HS-DS530 PCB Handling Equipment
Application
This machine is used to loading the bare PCBs to the start of SMT line.
Specification
| Model | HS-DS400 | HS-DS530 |
| PCB Size | 50*50~400*400 | 50*50~530*500 |
| Usage | Loading the bare boards | |
| PCB thickness | Min 0.6mm | |
| Board loading time | 6s | |
| Air pressure | 4-6bar,max30L/min | |
| Transport direction | L-R or R-L(optional) | |
| Capacity | 10~150pcs | |
| Machine height | standard(900±20mm) | |
| Machine size | 505*825*1200mm | 600*920*1200mm |
Features
1, Panasonic PLC control.
2, Touch Screen Control, Step motor.
3, Full sheet metal structure,cooling soldering, computer white surface.
4, Uninterrupted loading, available for By-pass function.
5, Fast PCB feeding time, around 6 sec.
6, Smooth and parallel width adjustment(hand lead screw control).
7, Three color tower light display.
8, Whole machine in time error detection.
9, SMEMA communication interface,standard 4 pin wire.
About Packaging
COMPANY PROFILE
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer, We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of sMT/THT production line board handling equipment.We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same time,our experienced engineering team always grasps smart factory's developing directionupdates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
