Time Management 8 Tank Solder Paste Warm Up Machine With Touch Screen And FIFO Function

Time Management 8 Tank Solder Paste Warm Up Machine With Touch Screen And FIFO Function

Brand Name: HSTECH
Model Number: HS-SP-8N
MOQ: 1 set
Price: Negotiable
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 pcs per month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
New 8 Tank Solder Paste Warm Up Machine
Warranty:
1 Year
Control:
Touch Screen
PLC:
MITSUBISHI
Material:
Aluminum Alloy
Application:
Electronic Assembly
Power Supply:
AC220V
Power Consumption:
200W
Packaging Details:
Carton package
Supply Ability:
500 pcs per month
Product Description

Time Management 8 Tank Solder Paste Warm Up Machine With Touch Screen and FIFO Function





Introduction:


Solder Paste Warm-up Timer Machine can easily achieve the control of the solder paste temperature warm up time, which can save much time to record the time of solder paste back to the ambient temperature after take out off the refrigerated room. This is a efficiency way to control the temperature of the solder paste, make sure the activity of the solder paste, tnsure the printing quality, better to control the production plan, improve production efficiency.

Features:



1, Each tank of solder paste placement slot has an independent LED display time controller. After setting the time the solder paste will be fixed in the tank and sink automatically,also it will release automatically when time is over.

2. With FIFO function.

3. In the case of out of power accidently,even if not reach setted time, solder paste bottle will automatically pop up.

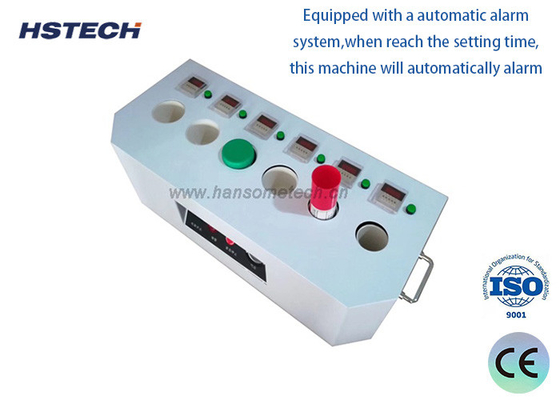

4. Equipped with a automatic alarm system,when reach the setting time, this machine will automatically alarm. Also there is a emergency stop button for emergency suitation, easy operation and security.

5,This automatic solder paste warm up machine has 4 tanks,can warm up 4 bottles paste at the same time,if need more tanks, can be customized.


Specification:



Product name Solder paste thawing machine
Model HS-SP-8N
Power supply AC110V/220V, 50/60Hz
Air pressure 0.4Mpa
Working cans 4 tank
Machine dimension 500*520*320mm
Weight 30kg


Precautions:

1. Each solder paste placement slot has independent time control. When the time is set, the solder paste tank will automatically sink, the solder paste will automatically sink upon completion of heating, and it will automatically pop out after completion of heating.
2. In the event of a power outage, if the set time is not reached, the solder paste bottle will not be able to be removed, avoiding the possibility of mixing up and taking it wrong.
3. Solder paste cans of different specifications and models can be used on the same equipment
4. Multiple cans of solder paste should be reheated simultaneously, with 500G of solder paste per can.
5. After use, turn off the power switch.

Application:

Solder paste preheating
The machine can heat refrigerated stored solder paste to the optimal working temperature, usually between 20-30 degrees Celsius.
Preheating the solder paste can improve its fluidity and viscosity, which is beneficial to achieving uniform and high-quality coating during the SMT mounting process.

temperature maintenance
The Solder Paste Warm Up Machine is equipped with a temperature control system that can continuously monitor and maintain the optimal working temperature of the solder paste.
Ensure solder paste maintains stable process performance throughout the entire production process.
improve product quality
Preheating and temperature control help improve solder joint wettability and soldering strength, thereby increasing the reliability of the final product.
Avoid welding defects caused by substandard solder paste temperature.
Process Optimization
This equipment can provide flexible temperature settings and control according to the welding process requirements of different products.
It is helpful for electronic manufacturing companies to optimize SMT welding process parameters in a targeted manner.
Improved production efficiency
Solder Paste Warm Up Machine can automatically complete the preheating and temperature maintenance of solder paste, reducing manual intervention.
Improved the automation level of SMT mounting process and significantly improved production efficiency
