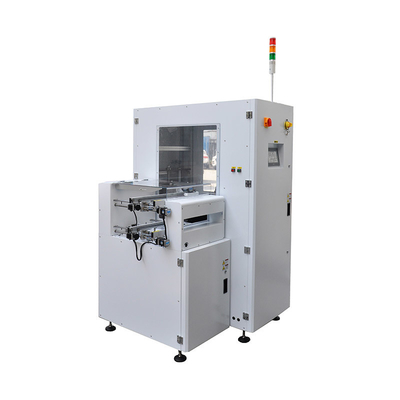

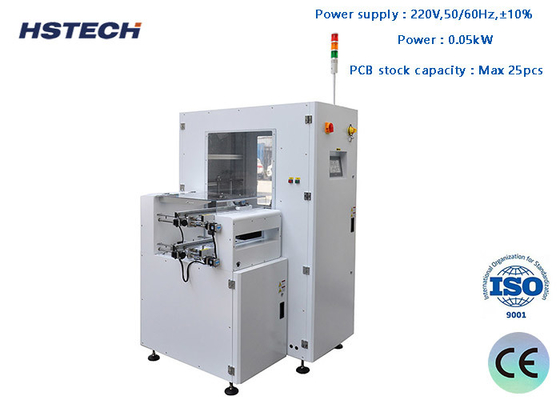

LED Control PCB Buffer PCB Handling Equipment Automatic for SMT Line SPI AOI Buffer
Application:
This unit is used as a buffer after SPI and AOI buffer equipment.
1. Use friendly soft touch LED membrane control panel.
2. FIFO,LIFO,Loader, Unloader,Reject mode selected.
3. Fast, smooth and precise indexing.
4. Pneumatic clamps provided for magazine alignment.
5. Pneumatic pusher’s pressure regulated.
6. Threshold’s system provided.
7. Additional magazines buffering capacity available upon request.
8. SMEMA compatible.
| Model | HS-GH350 |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Board cycle time | Approx 20 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 10L/min |
| Number of magazines | Upper:1 magazine, Bottom side:1 magazines |
| Signal | SMEMA |
| Options | 1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
| Model | HS-HC250S | HS-HC330M | HS-HC390L | HS-HC460XL |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1250*1200*1600mm | 1460*1360*1600mm | 1610*1480*1600mm | 1610*1620*1600mm |
| Weight | 170kg | 230kg | 300kg | 330kg |
Application of SPI AOI Buffer:
Data caching and processing:
SPI AOI Buffer temporarily stores solder paste inspection data obtained from SPI inspection equipment.
By caching data, the continuity and efficiency of AOI inspection can be ensured, and AOI inspection interruption caused by data transmission delay can be avoided.
At the same time, Buffer will pre-process and filter the data, only pass the key information required by AOI, and reduce the calculation load of AOI system.
Inspection process optimization:
SPI AOI Buffer effectively couples the processes of SPI inspection and AOI inspection.
Use the data cached by Buffer to provide the AOI system, so that AOI does not need to repeatedly scan the inspected area.
It improves the efficiency and throughput of the entire inspection process and shortens the product inspection time.
Inspection information management:
SPI AOI Buffer saves the inspection results of SPI and AOI to form complete product inspection information.
This information can be used for defect analysis, process optimization, quality tracking and other purposes.
It provides valuable data support for subsequent production data analysis and quality management.
Inspection visualization:
SPI AOI Buffer can provide a graphical inspection result viewing interface.
Operators can intuitively understand the detection status of each link of SPI and AOI.
It is conducive to quickly locating and diagnosing problems in the production process.
