| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

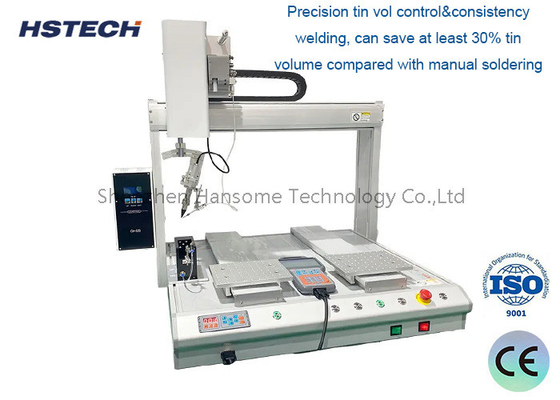

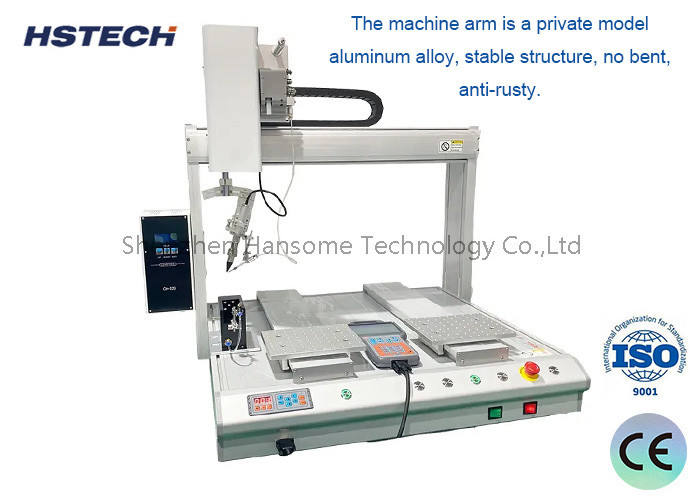

High-precision Auto Soldering Robot with Hiwin Linear Guide
Introduction
This automatic desktop soldering machine is a hot seller, it is manually programmed using a demonstration box and uses a high quality stepper motor and timing belt to drive the machine. The machine is available in single or double station and has a standard travelling range of 300*300mm or can be customised according to customer's product requirements.
Features
1, five-axis work, X1/Y1/X2/Y2/Z and R rotary movement, to achieve multi-angle welding.
2,Machine with automatic cleaning function, soldering iron/soldering head without nitrogen, very safe and environmentally friendly,
3, the machine moving system using Taiwan brand Hiwin linear guide, high precision, high accuracy.
4, the use of very mature control board to produce machine control system, can also use PLC.
5. Take the iron head as the base point, align the key position of the product, press the enter key, the programme will automatically generate the point in the system, and then set up the relevant data of the point, etc.
6. Adopting high-precision stepping motor and synchronous belt driving system, as well as advanced motion control algorithm to effectively improve motion positioning accuracy and repeatability.
7. The machine has an automatic cleaning function, which can make the solder processing more stable and extend the service life of the soldering iron.
8,Using handheld LCD teaching pendant, programming is simple, high precision and easy to learn.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
