| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |
Desktop Auto Soldering Machine with Nitrogen-free Soldering Tip & Hiwin Linear Guide
Introduction
This automatic desktop welding machine is a popular product that uses a teaching box for manual programming and is driven by high-quality stepper motors and timed belts. This machine can be selected as a single or dual station, with a travel standard of 300 * 300mm, and can be customized according to customer product requirements.
Application
1. Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
5. precision machinery/electrical products :VTR.
Features
1. 4-axis operation, X/Y/Z and R rotation movement, achieving multi angle welding.
2. The machine has an automatic cleaning function, and the soldering iron/tip does not contain nitrogen, which is very safe and environmentally friendly,
3. The Taiwan brand Haiwen linear guide rail is used for machine tool movement systems, with high precision and precision.
4. Using highly mature control boards to create machine control systems, PLC can also be used.
5. Align the key position of the product with the iron head as the base point, press the enter key, and the program will automatically generate the point in the system, and then set the data of the point.

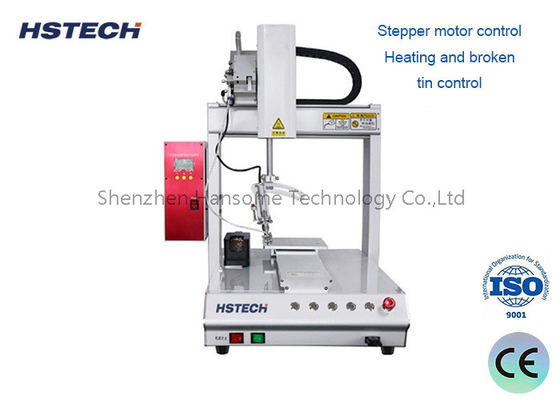

6. Adopting high-precision stepper motors and synchronous belt drive systems, advanced motion control algorithms, effectively improving motion positioning accuracy and repeatability.
7. This machine has an automatic cleaning function, which can make soldering processing more stable and extend the service life of soldering iron.

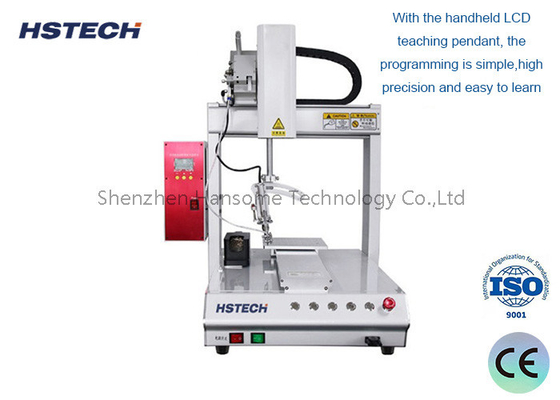

8. Handheld LCD teaching pendant, simple programming, high accuracy, easy to learn and use.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
