| Brand Name: | HSTECH |
| Model Number: | HS-T460 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

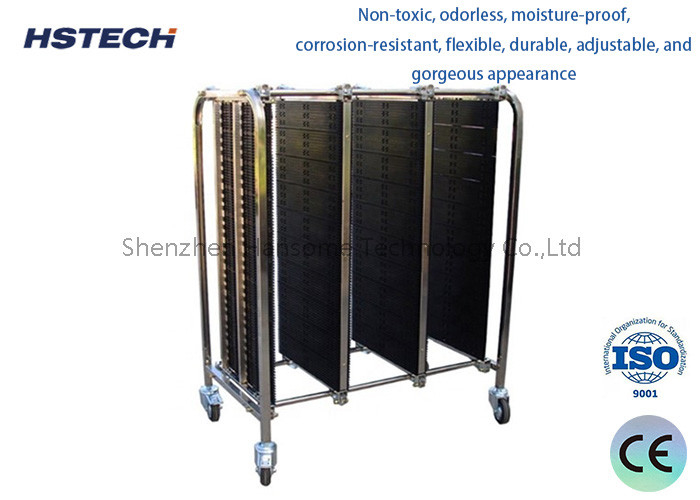

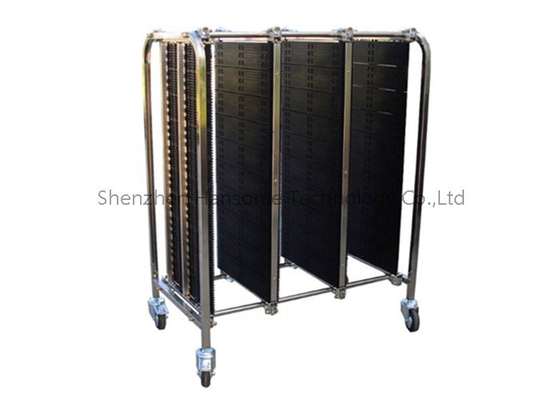

High Capacity PCB Handling Equipment Turnover Car with Stainless Steel Structure
This PCB storage turnover car is used in the SMT production factory, the car has two options in width, 350mm and 460mm. It made of anti-static materials and stainless steel structure. The turnover cart standard has 4 bezels,the distance between each bezel is adjustable, and standard can store 3 layers PCBs, each layer can max store 100pcs PCB.
1, Non-toxic, odorless, moisture-proof, corrosion-resistant, flexible, durable, adjustable, and gorgeous appearance.
2, This turnover car can be divided according to the use:anti-static turnover car,Conductive turnover car, parts anti-static turnover car.
3, Anti-static surface resistance of 10 to the power of 6 to 10 of the 9th power,surface conductive resistance of 10 below the power of 4 to 10 to the 6th power.
4, Each layer has marked the number, easy management.
5, Made of all stainless steel, and the accessories are complete and diversified, and the production capacity is strong. The frame size and the number of rail slots can be customized according to customer requirements.
6, The rack is Non-toxic, odorless, moisture-proof, corrosion-resistant, durable,also can be stackable.
7, Standard max can store 300pcs, customized is available.
8, The whole car can be moved, the wheels are anti-static, and four wheels (two with brakes).
9, Easy to install and disassembly, convenient for replacement and maintenance.
Function of PCB storage turnover vehicle:
1.Transit storage: Between the processes of PCB production line, storage vehicle can temporarily store semi-finished PCB to achieve connection and buffer between processes.
2.Batch transportation: Storage vehicle can carry large quantities of PCB boards, which is convenient for transportation between different workshops or warehouses.
3.Process protection: The storage vehicle adopts a closed design, which can effectively protect the PCB board from external factors such as dust and static electricity.
4.Standardized management: The storage vehicle is equipped with a numbering and barcode system, which helps to trace and manage the inventory of PCB boards.
5.Improve efficiency: The storage vehicle can realize the automatic handling and stacking of PCB boards, reduce manual operation and improve production efficiency.
6.Save costs: Compared with traditional manual handling, the storage vehicle can greatly reduce labor costs and improve turnover efficiency.
This anti-static PCB turnover car is widely used in SMT processing, machinery, automotive, home appliances, light industry, electronics and other production enterprises. It can resist acid and alkali, oil, dirt, non-toxic and tasteless. It can be used to store PCB board, easy to clean, and convenient for PCB board turnover. Stacked neatly for easy management. Its reasonable design and excellent quality are suitable for transportation, distribution, storage, distribution and processing in SMT factory logistics.
Specification:
| Overal size | 900*540*1260mm, |
| Suitable PCB size | max width 460mm |
| PCB storage capacity | Standard max store 300pcs |
| Side guid slot | Depth 3.0mm, width 5.0mm, pitch 10mm |
| Surface resistance | 106Ω-109Ω |
| Heat-resistance | 80 °C/120°C/200°C |
| Width adjustment | Gear Tracker / clips |
| Top and bottom base panel | Metal material |
| Type | Anti-static |
| Single weight | 34kg |
