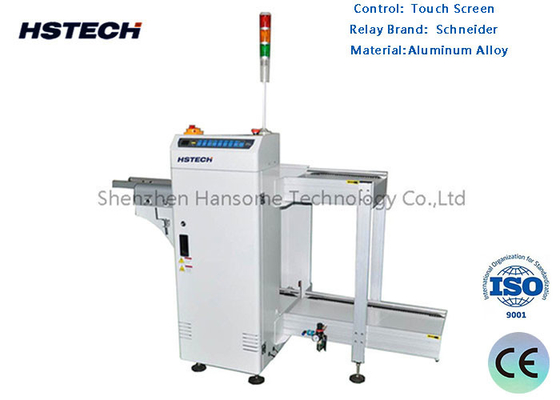

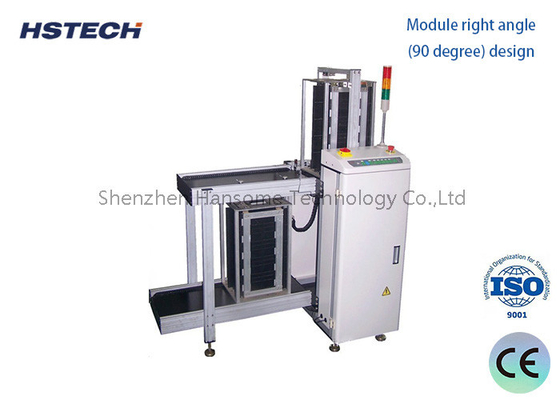

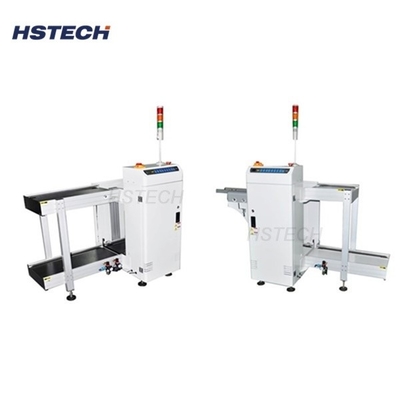

High Quality Double Track 6 Magazines Loading Capability PCB Unloader With PLC Control System
PCB Loader introduce:
This unit is used to collect PCBs into two magazines from dual track equipment at the same time.
Working principle of the unloader
Board receiving mechanism
The SMT unloader uses a board receiving mechanism such as a robot or a conveyor belt to remove the mounted PCB from the mounter.
The robot usually uses vacuum adsorption to firmly hold the PCB.
Transfer mechanism
The unloader will transfer the connected PCB to the designated output or subsequent station.
The horizontal stability of the PCB will be maintained during the transfer process to avoid component position deviation.
Precise positioning
Unloaders are usually equipped with a visual recognition system to monitor the position and angle of the PCB in real time.
The control system can accurately control the transfer and placement of the PCB based on the feedback data.
High degree of automation
Most modern SMT unloaders have achieved fully automated operation without manual intervention.
PCBs can be quickly and efficiently transferred from the mounter to the next process.
Coordination with the mounter
The working sequence of the unloader needs to be coordinated with the previous mounter.
Ensure that the PCB can be transferred from one process to the next continuously and seamlessly.
Features:
1, PLC Control system
2, Dual tracks and dual lift platforms design
3, 6 magazines loading capability
4, Designed gas circuit for transmit PCB smoothly and stably
5, Standard SMEMA
Specification:
| Type | DU-250 | DU-300 | DU-400 | DU-500 |
| Power Supply | AC110V/AC220V 50H60Hz | AC110V/AC220V 50H60Hz | AC110V/AC220V 50H60Hz | AC110V/AC220V 50H60Hz |
| Air Supply | 5kgf/C M2 | 5kgf/C M2 | 5kgf/C M2 | 5kgf/C M2 |
| PCB Size(mm) | 350*50~250 | 445*50~330 | 530*50~390 | 535*50~460 |
| PCB Direction | left to right or right to left | left to right or right to left | left to right or right to left | left to right or right to left |
| Magazine Size(mm) | 335*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Step pitches(mm) | 10,20,30,40 | 10,20,30,40 | 10,20,30,40 | 10,20,30,40 |
| Transport Height(mm) | 900±20 | 900±20 | 900±20 | 900±20 |
| Transmission Speed | 6m/S | 10m/S | 10m/S | 10m/S |
| Main Motor Power | 440W | 440W | 440W | 440W |
| Machine Size(mm) | 1510*1530*1250 | 1910*1630*1250 | 2160*1760*1250 | 2160*1900*1250 |
| Weight(kgs) | 320 | 350 | 380 | 410 |
