New Design 5 Tank Solder Paste Warm Up Machine Solder Paste Warm-Up Timer Machine

New Design 5 Tank Solder Paste Warm Up Machine Solder Paste Warm-Up Timer Machine

Introduction

The solder paste reheating machine is a device used to heat solder paste with high viscosity to a certain temperature for easy use. Solder paste is a semi-solid paste composed of a variety of metal powders, organic solvents and resins, and is often used to coat circuit boards in the surface mount (SMT) process. The humidity and temperature changes of solder paste will affect its performance, so the solder paste needs to be reheated to the appropriate temperature and viscosity.

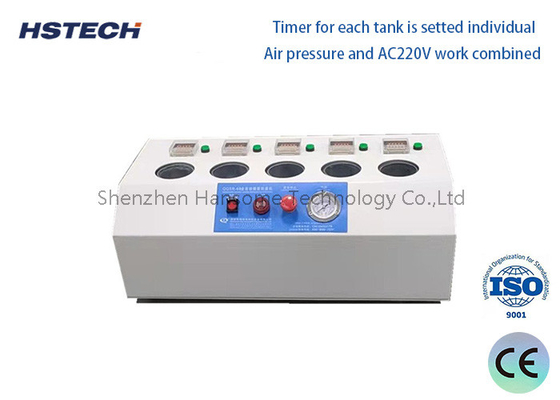

5 independent heating chambers
The machine has 5 independent heating chambers, which can preheat 5 different types or formulas of solder paste at the same time. This can improve production efficiency.

Precise temperature control
Each heating chamber is equipped with a temperature sensor and PID control system, which can accurately control the preheating temperature of the solder paste to ensure the performance of the solder paste. Generally, the temperature range of 30-50°C can be set.

Program control
The machine can set a multi-stage heating program to automatically adjust the heating time and temperature curve according to the characteristics of the solder paste. The operator only needs to put the solder paste into the heating chamber to automatically complete the preheating process.

Visual operation interface
The equipment is equipped with a touch screen display panel, which intuitively displays the temperature and operating status of each heating chamber, making it convenient for operators to monitor and adjust.

Compact structure
The whole machine is small in size and occupies a small area, suitable for small spaces such as factories or laboratories.

Specification

Application Industry

1.Electronic Assembly Industry
This is the main application area of ​​solder paste reheating machine. In the SMT mounting process, the solder paste needs to be preheated before it can meet the process requirements. The reheating machine can heat the solder paste to the appropriate temperature to ensure the quality of welding.

2.Laboratory and Testing
R&D and quality inspection departments also need to use reheating machines to preheat solder paste samples for analysis, testing and performance evaluation.

3.Repair and Rework
During the repair process of electronic products, it is also necessary to use a reheating machine to reheat the old solder paste so that the soldering operation can be resumed.

4.Solder Paste Storage
Solder paste stored for a long time may become dry or agglomerated. Using a reheating machine can restore the solder paste to good fluidity and coating properties, extending its service life.

5.Other Applications
In addition to the electronics industry, some precision machinery manufacturing, jewelry processing and other fields also use solder paste reheating machines
