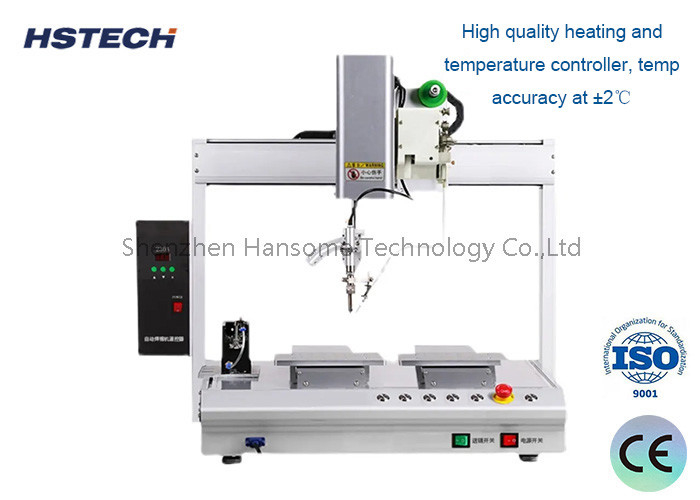

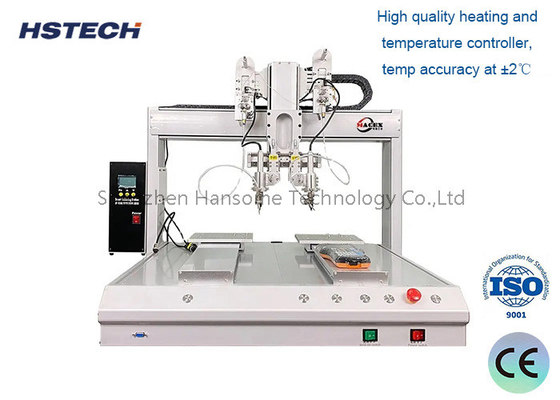

4 Axis Desktop Soldering Machine Automatic Soldering Robot with Stepper Motor

4 Axis Desktop Soldering Machine Automatic Soldering Robot with Stepper Motor

Introduce

A Desktop Soldering Machine is a desktop device used for electronic soldering. It is commonly used in low-volume production, repairs and DIY

projects, providing a convenient and precise welding solution.

Compact design
The whole machine is small in size, occupying only about 0.5-1㎡ of floor space
Suitable for use on a workbench or desktop
Easy and flexible deployment in a production workshop or laboratory

Multi-function welding
Can perform intelligent welding such as automatic solder joint detection and temperature control
Supports manual operation and automatic welding modes
Suitable for welding of various small parts and electronic components

High-precision control
Adopts advanced temperature sensors and control systems
Can accurately control welding temperature and welding time
Ensure stable and reliable product welding quality

Human-computer interaction
Equipped with a friendly touch screen operation interface
Can set welding parameters and monitor the welding process in real time
Easy for operators to quickly master the use

Intelligent design
Integrated automatic tin feeding, smoke and dust absorption and other functions
Can be connected to the production management system for remote monitoring
Greatly improve production efficiency and welding quality

Safe and environmentally friendly
Equipped with multiple safety protection devices
Uses lead-free solder, meets RoHS environmental protection requirements
Low power consumption design, taking into account energy saving and environmental protection

Application

1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.

Features

1, It's 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The machine has automatic cleaning function, the soldering iron/tip without nitrogen, very safety and environment protective,

3, Taiwan brand Hiwin linear guide used in the machine moving system, high precision and high accuracy.

4, Using very mature control board to make the machine control system, also available for using PLC.
5, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
6. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

8, With the handheld LCD teaching pendant, the programming is simple,high precision and easy to learn.

Specification
