| Brand Name: | HSTECH |
| Model Number: | HS-460BC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

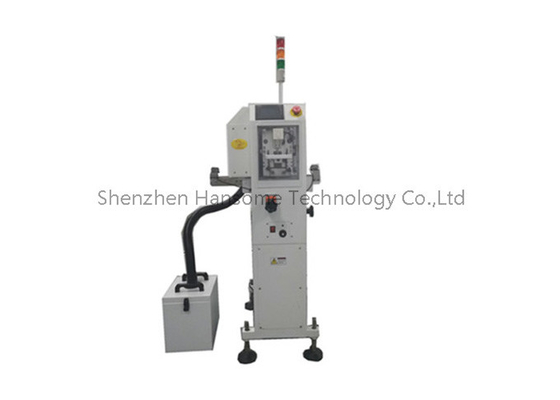

Stainless Steel PCB Surface Dust Cleaner PCB Handling Equipment With High Precision Brush
Introduction
This machine is used between PCB loader and screen printer, with brush and sticker roller to clean the dust,electricity static on the surface of the PCB.
Features

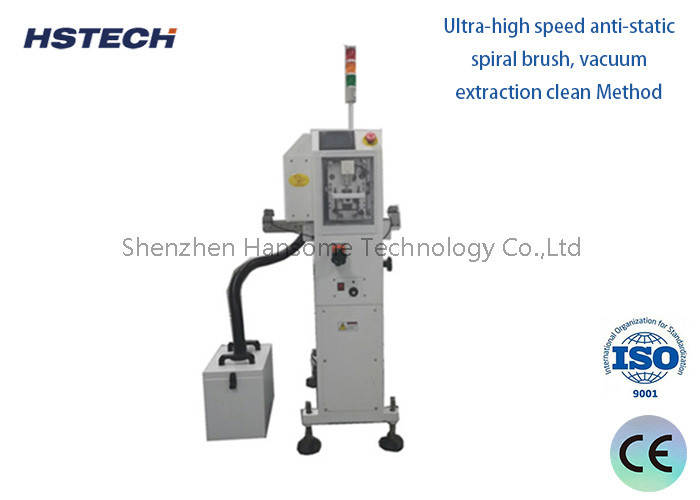

1, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
2, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
3, Equipped with the static eliminate function, completely eliminate electrostatic interference.
4, Touching clean method, cleanness above 99%.
5, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.
6, Mechanical parts draw-out design, maintenance is simple.
7, Interface display in English and Chinese, interface operation convenient and simple.
Improve thequality
1.Abnormal quality due to dust
Other features:
Efficient cleaning
Use high-pressure airflow or electrostatic dust suction to clean the PCB surface
Can quickly and efficiently remove various tiny particles on the PCB board
Ensure that the PCB surface is clean and dust-free, providing a clean environment for subsequent processes
Fully automated
The entire cleaning process is fully automated
Cleaning parameters can be set through a computer control system
Greatly improve cleaning efficiency and reduce labor costs
Safe and environmentally friendly
The equipment adopts a closed design to avoid the spread of particles
Use harmless clean gas and will not cause any damage to the PCB
The entire process is green and environmentally friendly and complies with relevant safety standards
Strong applicability
Can handle PCB boards of various sizes
Cleaning speed can reach 30-50 PCBs per minute
Applicable to SMT production lines, electronic assembly and other fields
Easy to maintain and integrate
Modular design for easy maintenance and replacement of consumables
Can be integrated with the production management system to achieve intelligent control
Specification
| Model | HS-250BC | HS-330BC | HS-390BC | HS-460BC |
| PCB dimension | (50*50)~(350*250) | (50*50)~(460*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Machine dimension | 555*820*1350 | 555*900*1350 | 555*960*1350 | 555*1030*1350 |
| Weight | 80kg | 90kg | 100kg | 110kg |
| PCB thickness | 0.4~5mm |
| Power supply | AC100~230V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| Cleaning brush | top 2 pcs |
| Sticker roller | top 1 pc |
| Brush | ESD,high precision brush |
| If with dust collector | Yes |
| Transport speed | 0~9m/min,adjustable |
| Transport height | standard 900±20mm |
| Direction | L to R, or R to L,optional |
| Cycle time | Around 8s |
