Dual Platform Air Cleaning Desktop Soldering Machine PCB Depaneling Equipment With Timing Belt

Dual Platform Air Cleaning Desktop Soldering Machine PCB Depaneling Equipment With Timing Belt

Introduce

The soldering machine is a mechanical equipment equipped with a large transparent window that allows the entire welding process to be observed. It plays a very important role in product development and process curve optimization. The temperature control adopts a high-precision intuitive intelligent controller with programmable perfect curve control, precise temperature control, simple parameter setting and easy operation. Can complete single and double-sided PCB board welding in all package forms such as CHIP, SOP, PLCC, QFP, BGA, etc.
The soldering machine changes the practice of soldering machines that can only rely on natural cooling or pulling out the PCB board for cooling outside the soldering machine. It makes the reflow soldering process curve more perfect and avoids surface mount device damage and soldering shift problems.

Features

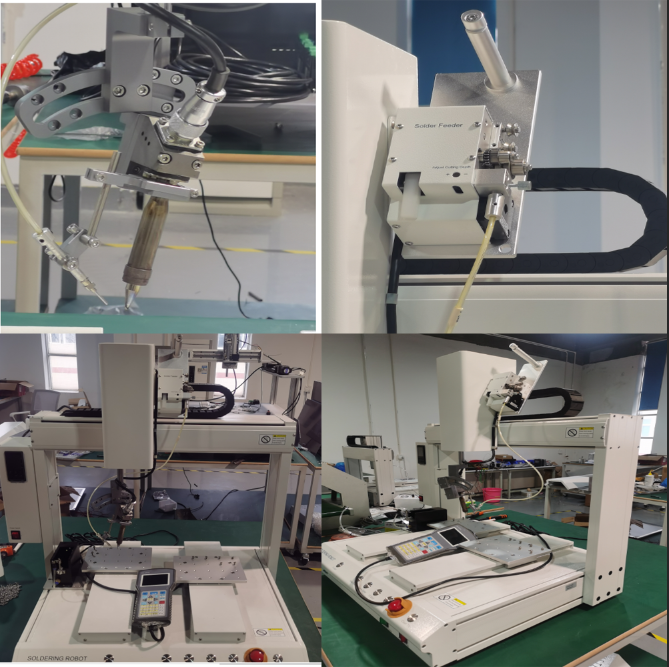

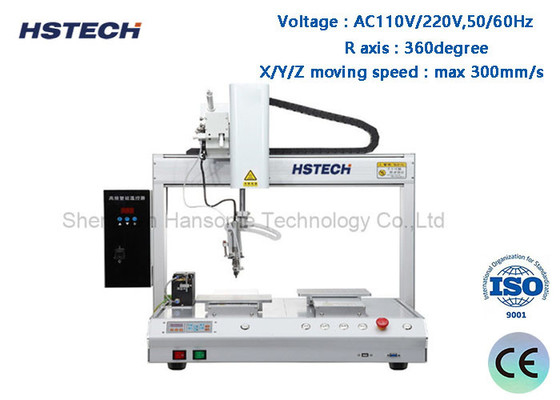

1, It's 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The machine has automatic cleaning function, the soldering iron/tip without nitrogen, very safety and environment protective,

3, Taiwan brand Hiwin linear guide used in the machine moving system, high precision and high accuracy.

4, Using very mature control board to make the machine control system, also available for using PLC.
5, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.

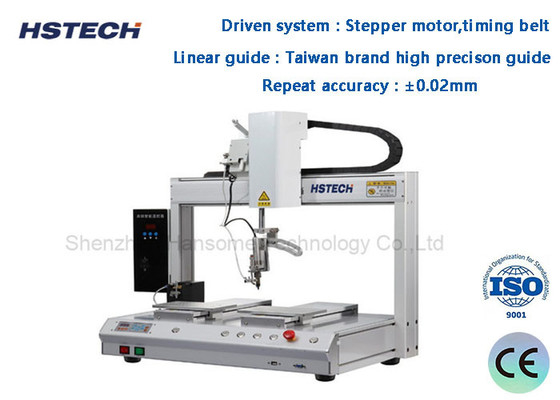

6. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

8, With the handheld LCD teaching pendant, the programming is simple,high precision and easy to learn.


Small and compact
Small size, limited desktop space, suitable for use on a workbench or test bench.
Easy to flexibly place and operate in a small working environment.
Temperature controllable
Equipped with digital temperature display and adjustment function, the required welding temperature can be accurately set.
Ensure constant temperature during welding and improve welding quality.
Multiple functions
Supports the switching use of handle soldering pens and soldering irons, suitable for various welding needs.
Some models also have hot air desoldering function, which is convenient for the replacement of electronic components.
Safe and durable
Adopts heat insulation design to protect operators from burns.
Metal shell structure, strong durability, suitable for daily working environment.
Easy to operate
Simple and intuitive control panel, convenient for users to adjust and switch temperature.
Suitable for small and medium-sized electronic enterprises and individual repairers.



Specification
