| Brand Name: | HSTECH |
| Model Number: | HS-668 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per week |

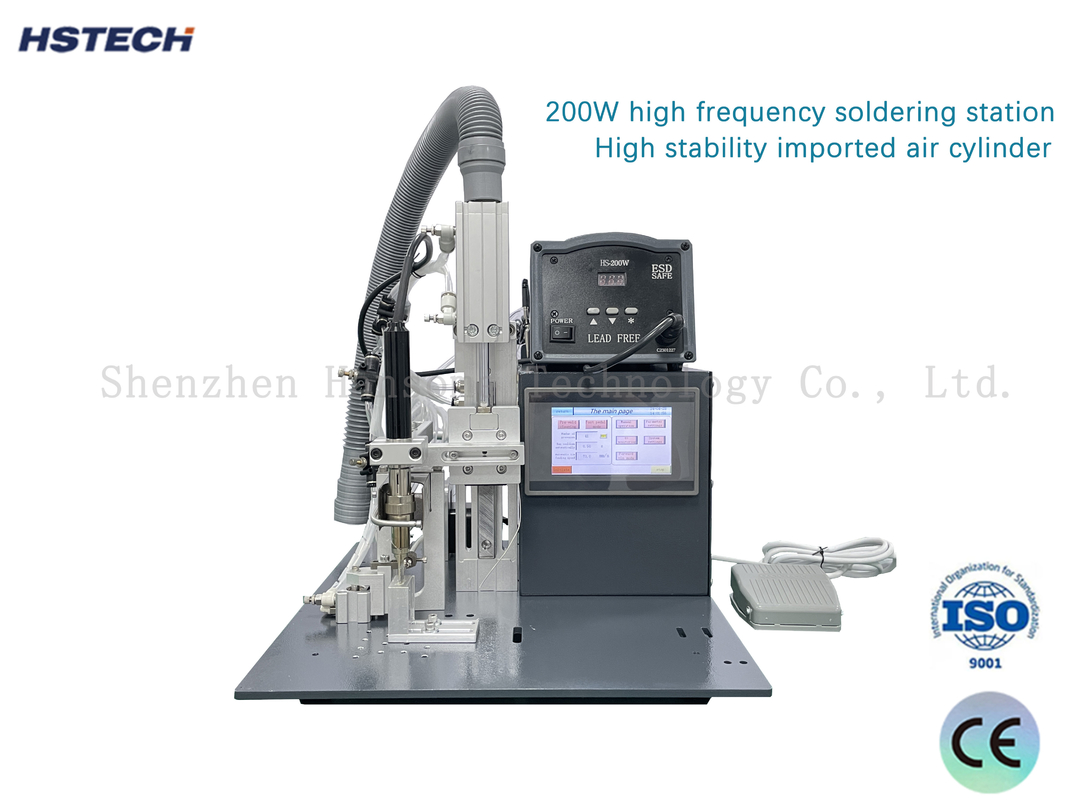

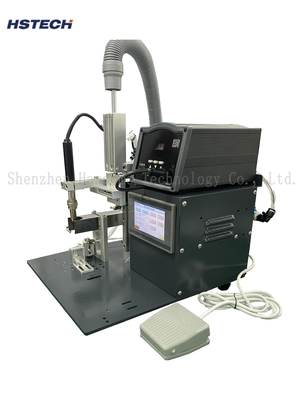

Single Station Semi-Auto Soldering Station Automatic Soldering Robot For Electronic Assembly
Introduction
Semi-Auto Soldering Station is a device used for electronic welding, which provides a semi-automatic welding solution.
Function Overview
This is a semi-automatic equipment that integrates multiple welding functions.
It can realize automatic identification of solder joints, automatic tin supply, automatic welding and other functions.
It greatly improves welding efficiency and welding quality, and is suitable for small and medium-sized batches of electronic products welding.
Main features
Working process
Place the circuit board to be welded on the positioning platform.
The machine vision system automatically identifies the position and angle of the solder joint.
The automatic tin supply system supplies an appropriate amount of solder to the solder nozzle.
The welder automatically aligns the solder joint according to the identification results and implements welding.
After welding is completed, it automatically exits and waits for the next solder joint.
Application scenarios
Mainly used in the welding process of electronic product manufacturing, such as PCB assembly, electronic module welding, etc.
Suitable for small and medium-sized batch production, improve welding efficiency, and ensure welding quality.
It is widely used in consumer electronics, industrial control, communication equipment manufacturing and other industries.
| Product Name | Semi-auto soldering station |
| Model No. | HS-668 |
| Power supply | Single phase, 220V 50/60Hz |
| Air pressure | 0.2-0.6MPa(Use clean dry air) |

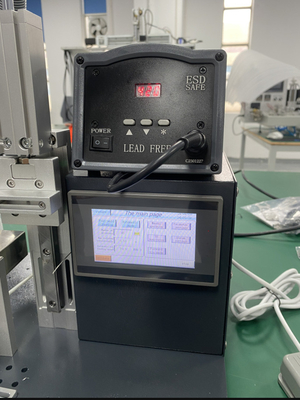

| Control mode | PLC+touch screen |
| Temperature | (-10)-(+60℃)No wind, no dust |
| Soldering control switch | Pedal switch |
| Machine size | L410*W350*H500MM |
| Weight | 15 KG |
About Packaging
