| Brand Name: | HSTECH |
| Model Number: | HS-CVN350 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 50 sets per month |

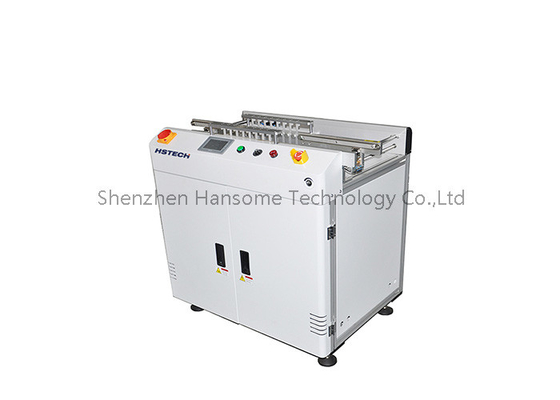

Variable Speed Control Single Phase PCB Reject Conveyor PCB Handling Equipment With Panasonic PLC
Introduce
PCB Reject Conveyor (PCB Reject Conveyor) is a device used in automated electronic manufacturing to remove and convey printed circuit boards (PCBs) that are judged to be defective or substandard from the production line to the reject area.
The following is a general introduction to PCB Reject Conveyor:
1.Function: The main function of PCB Reject Conveyor is to detect and remove substandard PCBs during the electronics manufacturing process. When PCBs pass through quality inspection or automated inspection systems, if they are judged to be defective or unqualified products, the reject conveyor will transport them from the production line to the reject area to ensure that good products on the production line continue to flow.
2.Automated Conveyor: PCB Reject Conveyor is often integrated with automated equipment on the production line, such as a printed circuit board assembly line or test equipment. It can automatically receive, transmit and locate unqualified PCBs based on system signals or detection results.
3.Material Handling: PCB Reject Conveyor typically uses a conveyor belt or conveyor system to deliver failed PCBs. The conveyor belt usually has adjustable speed and running direction to accurately move the PCB to the reject area.
4.Visualization and alarms: PCB Reject Conveyors are usually equipped with visual interfaces and alarm systems so that operators can monitor the transfer process and the number of failed PCBs in real time. Alarm systems can emit audible or light signals to alert operators that reject areas need to be addressed.
5.Troubleshooting: In some cases, if the PCB Reject Conveyor encounters a malfunction or transmission problem, operators can perform troubleshooting and maintenance by inspecting components such as conveyor belts, conveyor systems, and transmissions.
6.System integration: PCB Reject Conveyor is usually integrated with other automation equipment and systems, such as quality inspection equipment, automatic sorting systems, and data management systems. This integration can improve production efficiency and quality control and enable higher levels of automation.
Specification
| Model | HS-CVN350 | HS-CVN460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 1000*690*930mm | 1000*800*930mm |
| Weight | 70kg | 90kg |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L(optional) |
| Transporting speed | 0.5~20 m/min or specify |
| Power supply | AC100-230V,50/60Hz,single phase |
| Power consumption | 100VA max |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| Communication | SMEMA |
Features
1, Reject, inspect and by-pass modes all available.
2, Modular design.
3, Stability enhanced by robust design.

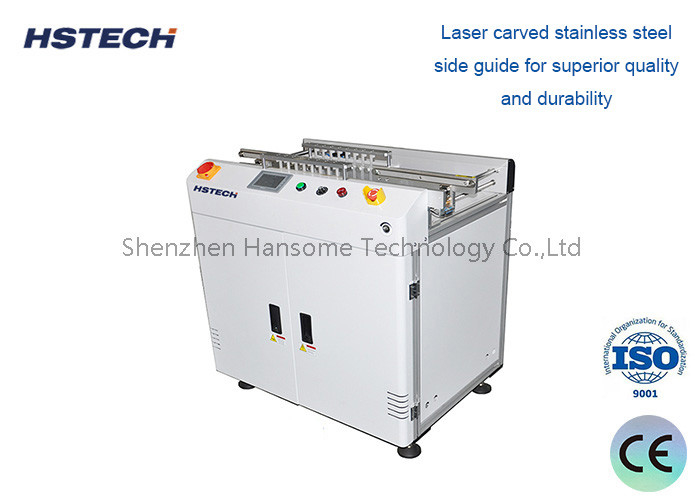

4, Laser carved stainless steel side guide for superior quality and durability.
5, Ergonomic design arm rest.
6, Smooth and parallel width adjustment(lead screw).
7, Different lengths available upon request.
8, Variable speed control.
9,SMEMA compatible.
Transporting rail
Lifting Sturcture
Electric control
