Multi-Functional PCB Buffer PCB Handling Equipment FIFO LIFO Buffer For SMT Line

Multi-Functional PCB Buffer PCB Handling Equipment FIFO,LIFO Buffer For SMT Line

Introduce
PCB Buffer is a device used to temporarily store and cache printed circuit boards (PCBs).

Function:
Receive and temporarily store the processed PCB to provide buffer for subsequent processes.
Automatically adjust the storage and removal sequence of PCBs according to production progress.
Cooperate with other equipment in the production line to achieve orderly and continuous transmission of PCBs.
Provide PCB status monitoring to ensure nothing is missed or mixed up during the production process.

Main feature:
Using a multi-layer structure of storage space, multiple batches of PCBs can be stored at the same time.
Built-in automated transmission mechanisms, such as conveyor belts, rotating platforms, etc.
Equipped with PCB position detection and classification identification functions.
Programmable control to adapt to different sizes and quantities of PCBs.
It has a compact structure, small footprint and is easy to integrate into the production line.
Equipped with safety protection devices, such as light barriers, emergency stops, etc.

Main component:
Storage space: Adopts a multi-layer architecture to increase storage density.
Transmission mechanism: such as conveyor belt, roller, etc., used for automatic entry and exit of PCB.
Detection system: including sensors, cameras, etc., to achieve positioning and identification.
Program control system: PLC or embedded controller to achieve automated management.
Safety protection devices: such as light grids, emergency stop switches, etc.

Application scenarios:
SMT production line: Provides PCB buffering between reflow soldering, inspection and other processes.
Drilling/tin plating wire: realize orderly transfer of PCB between different processes.
Automated assembly lines: Provide ephemeral PCB caching at manual assembly sites.
Testing session: Provide PCB staging and queuing before and after the test equipment.

​Technical Details

Specification

Features

1. Use friendly soft touch LED membrane control panel.

2. FIFO,LIFO,Loader, Unloader,Reject mode selected.

3. Fast, smooth and precise indexing.

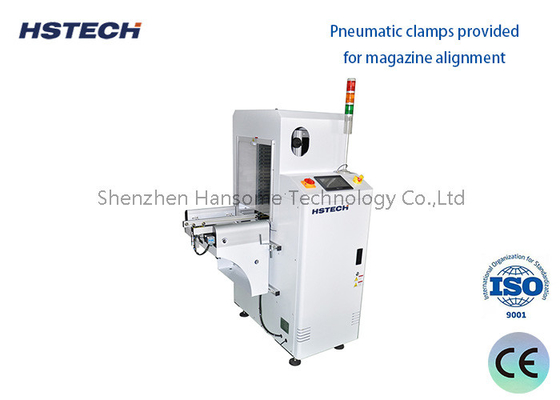

4. Pneumatic clamps provided for magazine alignment.

5. Pneumatic pusher’s pressure regulated.

6. Threshold’s system provided.

7. Additional magazines buffering capacity available upon request.

8. SMEMA compatible.

Machine drawing

Application

This unit is used as a buffer between SMD machine and Inspection equipment
