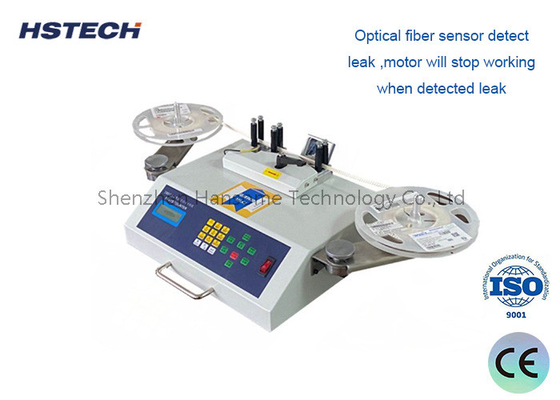

30W SMD Components Counter For Automatically Counting And Sorting Surface Mount Components

30W SMD Components CounterFor Automatically Counting And Sorting Surface Mount Components

Introduce

The SMD Components Counter is a device for automatically counting and sorting surface mount components (SMD).

Function:
Automatically identify and classify SMD components of different models and sizes.
Accurately calculate the quantity of each component and output detailed statistical data.
It can be connected with the production management system to realize data sharing and tracking.
Supports manual or automatic feeding mode to adapt to different production needs.
Equipped with component damage detection function to ensure counting accuracy.

Main feature:
Use advanced visual recognition technology to quickly and accurately classify components.
The component conveying mechanism is reasonably designed to ensure smooth and orderly entry of components.
Built-in high-performance processor can quickly complete the counting of large quantities of components.
The human-machine interface is friendly, the operation is simple, and the counting progress can be monitored in real time.
The equipment has a compact structure, small footprint, and is easy to integrate into the production line.
Programmable to realize automated operation and reduce manual operation load.

Main component:
Feeding mechanism: used to transport SMD components smoothly and orderly.
Visual recognition system: including high-definition cameras and image processing algorithms.
Counting and classification mechanism: Accurate counting and classification based on component characteristics.
Data processing system: completes real-time statistics, storage and external output.
Human-machine interface: Provides intuitive operation and monitoring functions.

Application scenarios:
SMT production line: Counts and sorts SMD components before and after placement.
Component inventory management: achieve accurate inventory and tracking of SMD components.
Quality inspection: Cooperate with AOI equipment to perform quality control on SMD components.
Laboratory/R&D: Perform statistics and analysis on sample SMD components.

Features

1.Easy to eperate,both positive and negative can be counted,zero error.
2.Able to preset the parts number,convenient for parts counting,feeding and picking up.A
3.Counting speed can be ajustable,improve the efficiency,meet the different size tape.

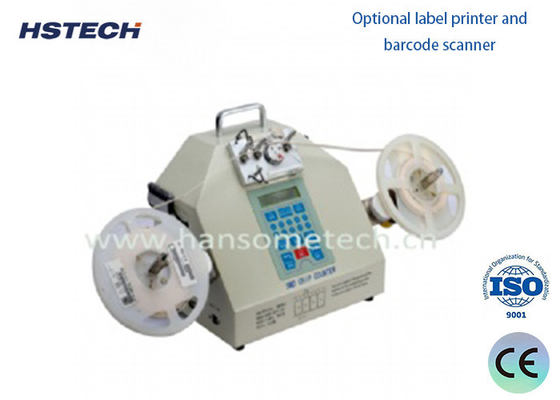

4.Optional label printer and barcode scanner.
5.The counter use drafting LCD screen. Small size, light weight, easy to carry
6.Use patent reflector,humanized operation platform.
7. Fully control the components in the factory, avoid mistakes.

Specification
