Time Control Fully Automatic Solder Paste Reheating Machine With Multiple Tanks
Introduce
Automatic Solder Paste Thawing Machine is a special equipment for automatically thawing solder paste.
It mainly has the following functions and features:
Function:
Automated thawing of refrigerated or frozen solder paste.
By precisely controlling temperature and time, we ensure that the solder paste is completely thawed and reaches optimal use.
Reduce manual participation and improve the efficiency and consistency of solder paste thawing.
main feature:
Fully automated operation: The entire thawing process can be completed without manual intervention.
Precise temperature control: Using PID control technology, the thawing temperature curve can be accurately controlled.
Flexible time setting: Different thawing times can be set according to the batch size and type of solder paste.
Safe and reliable: It is equipped with safety protection mechanisms such as over-temperature and over-time to avoid damage to the solder paste.
Compact size: compact structure design, small footprint, easy to install and use.
main component:
Heating chamber: used to place solder paste containers to be thawed.
Temperature sensor: monitors temperature changes inside the heating chamber.
Temperature control system: Precisely control the heating process according to the set temperature curve.
Timer: Set the time required for thawing, and the thawing will automatically end when the time is up.
Indicator lights and alarms: display working status and issue abnormal alarms.
Application scenarios:
Electronics manufacturing companies: used to automatically defrost solder paste required for SMT production lines.
Solder paste distributor: Provide on-site solder paste thawing services to customers.
Solder paste R&D unit: Thaw experimental samples and conduct performance tests.
Function
1. Fully automatic timed solder paste rewarming machine. One machine has multiple slots and can intelligently reheat multiple cans of solder paste at the same time to ensure the activity of the solder paste; the steel plate of this machine has a baked-painted appearance, with a smooth and tidy surface, fashionable and beautiful.
2. The machine is assembled and produced using imported electrical components;
3. Each can of solder paste is placed in a slot with independent time control. Once the time is set, the solder paste slot will automatically lock. The door cannot be opened before the timer expires. When the set temperature recovery time is reached, the slot will be locked. It will unlock automatically.
4. The machine can be operated with multiple tanks for temperature recovery, and each slot can hold 500G solder paste tanks.
Specification
| Machine name | Fully automatic solder paste reheating machine | product brand |
| Operating mode | voltage mode | Product net weight: 16kg |
| Operating Voltage | AC220V 60HZ | Product material: steel plate spray paint |
| Product Size |
Four slots L670*W220*H335mm Tank size: length 150*depth 100*height 110mm |
|
| Ability to work | The solder paste and red glue reheating machine/defrosting machine can be used with solder paste in the slot and needle-type red glue (all small red glue with a total length of less than 120MM can be used), and the solder paste and red glue can be switched intelligently. New and old customers can choose from 4/5/6/8/10/12/14 workstations to 30 workstations. Non-standard can be customized. Supports 250G/500G solder paste, total length less than 120MM needle tube red glue. | |

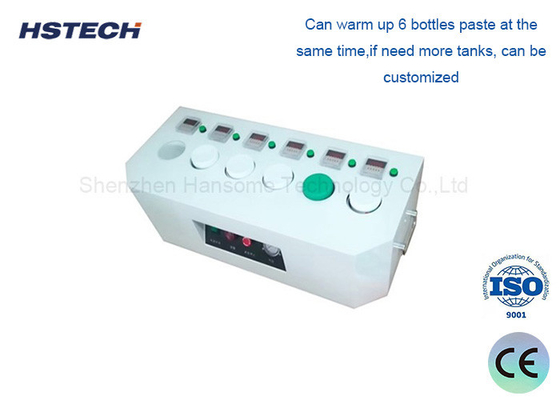

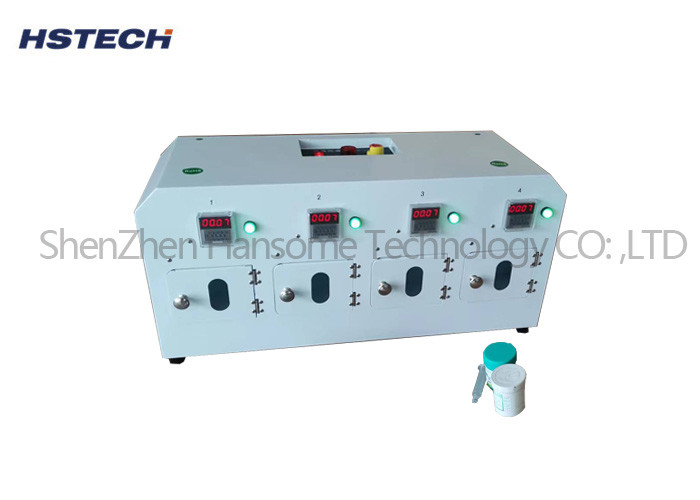

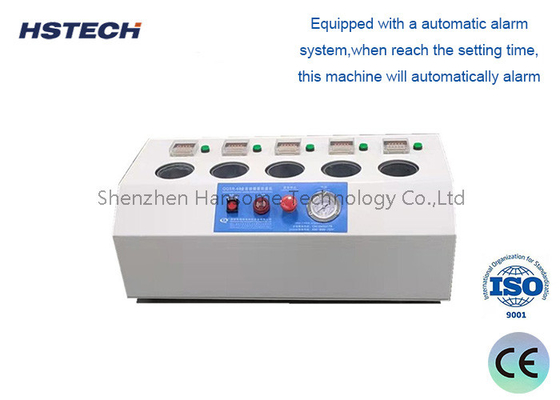

Product physical picture
