| Brand Name: | HSTECH |
| Model Number: | HS-250ULD |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

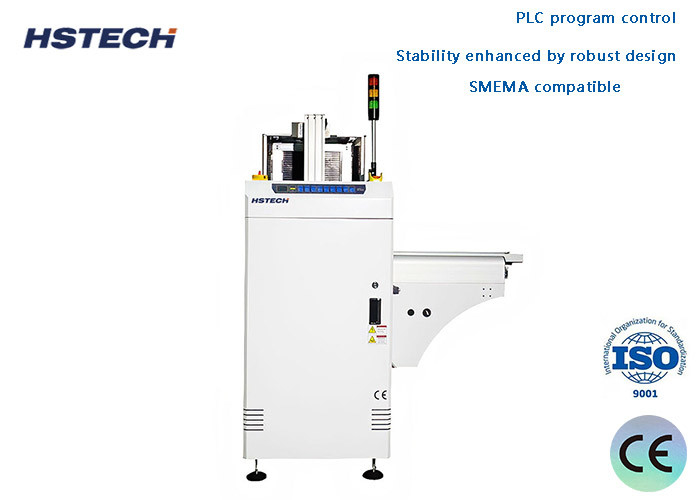

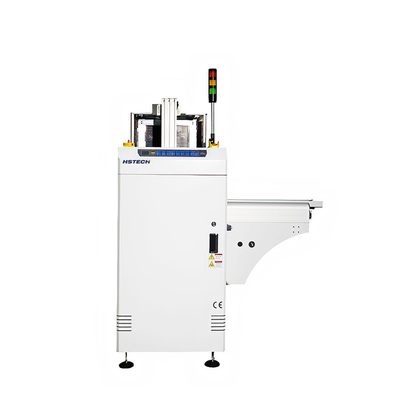

Manual Automatic Run Mode Selection PCB Unloader PCB Handling Equipment With SMEMA Signal
Introduce
The PCB Unloader is an automated device used to unload completed printed circuit boards (PCBs) from the production line.
It mainly has the following functions:
Automatically identify and locate PCBs and safely unload them onto output trays or pallets. This improves work efficiency and operational safety.
It can be automatically adjusted according to the size and shape of the PCB to adapt to different types of PCBs. This increases the device's versatility and flexibility.
Equipped with sensors and control systems, it can monitor the status and operation of the PCB in real time and issue alarms or take corrective measures in a timely manner.
A variety of safety protection measures are integrated, such as anti-collision, anomaly detection, etc., to ensure that the PCB will not be damaged during the unloading process.
It can realize linkage control with other equipment on the production line to form an automated production process.
Specification
| Model | HS-250ULD | HS-330ULD | HS-390ULD | HS-460ULD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 900±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine replace time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Pitches | 1-4(10mm step) | |||
| Communication | SMEMA | |||
| Machine dimension | 1700*780*1200 | 1900*860*1200 | 2200*920*1200 | 2200*1120*1200 |
| Weight | Approx 160kg | Approx 200kg | Approx 240kg | Approx 260kg |
Features
1, True color touch screen control
2, Mitsubishi PLC
3, Magazine capacity: top 1, bottom 1, or customized
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9, Tower light display
10, SMEMA signal
