| Brand Name: | HSTECH |
| Model Number: | YS-802E |
| MOQ: | 1 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

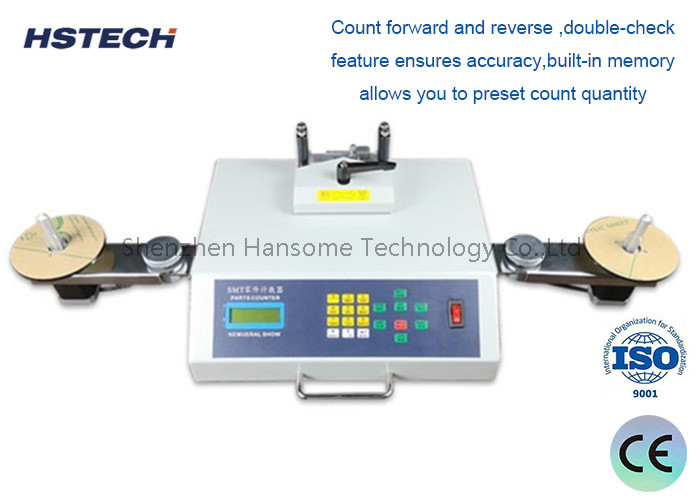

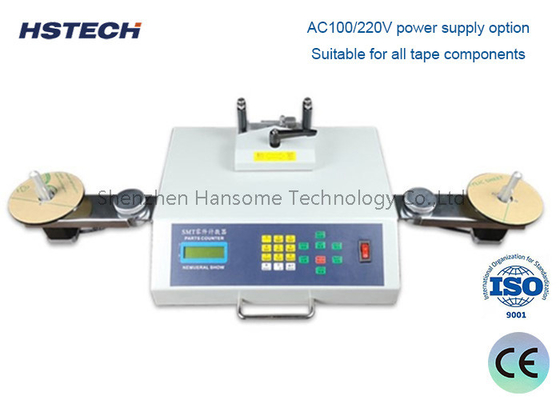

Accurate Counting SMD Component Counter with Infrared Sensor and Tape Width Selection
Introduce
Full-automatic way to calculate the number of parts, easy to order materials, easy to issue the material operation, unique design to prevent the fall off of the material belt will minimise the damage to the material belt, the positive direction can be counted, can be preset, accurate calculation of the number of parts, zero error. It can be equipped with scanner and barcode printer for easy management.
Features
1. LED display, counting qty can be setted freely.
2. Stainless steel machine structure.
3. Leak detection function, when tracking missing components, the counter will stop and reminder you.
4. The operation is simple, the positive and negative can be counted, and the function is really preset.
5. It can be equipped with scanning gun and bar code printer for easy management.
6. Counting speed can be ajustable,improve the efficiency,meet the different size tape.
7. The counter use drafting LCD screen. Small size, light weight, easy to carry
8 .Use patent reflector,humanized operation platform.
9. Fully control the components in the factory, avoid mistakes.
10. Fully control the number of SMT parts in the factory, and avoid the inventory and capital accumulation. Small size, light weight, easy to carry.
Specification
| Model | YS-802E |
| Power supply | AC110V,AC220V, 50/60Hz |
| Wattage | 30W |
| Counting time | 19 seconds to 2 min |
| Counting range | -59999~59999 |
| Pitch size | 2,4,8,9,10,12,16,24,32mm |
| Tape width | 8,12,16,24,32,44,56,72,88 m |
| Plastic reel size | 7-13 inch |
| Application | Suitable for all components |
| Product size | 450*270*180mm |
| Package size | 460*280*190mm |
| Gross weight | 10kg |
Principle of the product
The SMD counter adopts the principle of photoelectric sensing,and uses thecorresponding relation between the guide hole and the part.through the special-purpose processing chip and the large scale centralized circuit processingrealizes the zeroerror,accurately measures the number of SMD partscan realize the convenientand quick count,is the high efficiency auxiliary eguipment of SMT materialmanagement.
Main Components
1.Stepping motor
Adopt high stability copper core stepping motor, with high speed positioning accuracy. Quality and durability.
2.Control motherboard
SCM control with high performance. Low power consumption. No time limit, stable operation.
3.High Precision Gear
This equipment has high requirements for gears, which are made of imported steel with high precision laser cutting technology, featuring wear-resistant, high-precision, anti-running material, etc., to meet the smooth operation of large and small discs.
Product application
The SMD material belt type components are all suitable Diameterof belt wheel:Any size is all suitable PITCH:1,2,4,8,10,12,16,24,32,44,56 mm.
