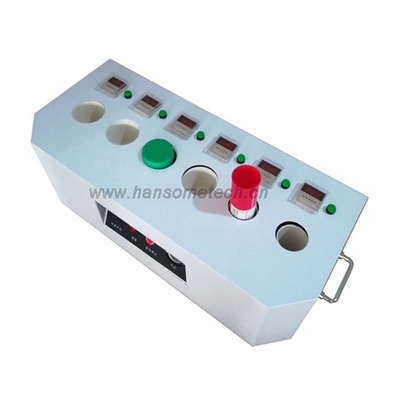

Touch Screen 8 Tank Solder Paste Warm Up Machine With FIFO Function

Touch Screen 8 Tank Solder Paste Warm Up Machine With FIFO Function

Brand Name: HSTECH
Model Number: HS-SP-8N
MOQ: 1 set
Price: Negotiable
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 pcs per month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
New 8 Tank Solder Paste Warm Up Machine
Warranty:
1 Year
Control:
Touch Screen
PLC:
MITSUBISHI
Material:
Aluminum Alloy
Power Supply:
AC220V
Power Consumption:
200W
Application:
Electronic Assembly
Packaging Details:
Carton package
Supply Ability:
500 pcs per month
Highlight:

FIFO Solder Paste Warm Up Machine

,

8 Tank Solder Paste Machine

,

Touch Screen Solder Paste Machine

Product Description

Touch Screen New 8 Tank Solder Paste Warm Up Machine With FIFO Function





Introduction


Solder Paste Warm-up Timer Machine can easily achieve the control of the solder paste temperature warm up time, which can save much time to record the time of solder paste back to the ambient temperature after take out off the refrigerated room. This is a efficiency way to control the temperature of the solder paste, make sure the activity of the solder paste, tnsure the printing quality, better to control the production plan, improve production efficiency.

Features



1, Each tank of solder paste placement slot has an independent LED display time controller. After setting the time the solder paste will be fixed in the tank and sink automatically,also it will release automatically when time is over.

2. With FIFO function.

3. In the case of out of power accidently,even if not reach setted time, solder paste bottle will automatically pop up.

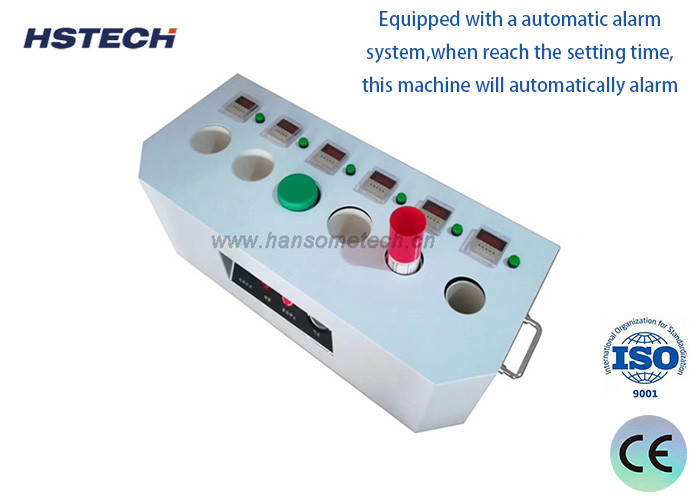

4. Equipped with a automatic alarm system,when reach the setting time, this machine will automatically alarm. Also there is a emergency stop button for emergency suitation, easy operation and security.

5,This automatic solder paste warm up machine has 4 tanks,can warm up 4 bottles paste at the same time,if need more tanks, can be customized.


Specification



Product name Solder paste thawing machine
Model HS-SP-8N
Power supply AC110V/220V, 50/60Hz
Air pressure 0.4Mpa
Working cans 4 tank
Machine dimension 500*520*320mm
Weight 30kg


Precautions

1. Each solder paste placement slot has independent time control. When the time is set, the solder paste tank will automatically sink, the solder paste will automatically sink upon completion of heating, and it will automatically pop out after completion of heating.
2. In the event of a power outage, if the set time is not reached, the solder paste bottle will not be able to be removed, avoiding the possibility of mixing up and taking it wrong.
3. Solder paste cans of different specifications and models can be used on the same equipment
4. Multiple cans of solder paste should be reheated simultaneously, with 500G of solder paste per can.
5. After use, turn off the power switch.
