Touch LED Control PCB Buffer Machine Using Servo Motor Used To Buffer And Store Printed Circuit Boards

Soft Touch LED Control PCB Buffer Machine Using Servo Motor With FIFO And By-Pass Function

Introduce

PCB Buffer Machine is an automated equipment used in the electronic manufacturing process to manage and control the flow and buffering of Printed Circuit Board (PCB) on the production line.

The main function of the PCB buffer machine is to balance and control the flow of PCBs between different workstations to ensure efficient operation of the production line. It is usually located at key locations on the production line, such as before and after the placement machine, and is used to adjust and balance the incoming and outgoing speed of PCBs to adapt to the work rhythm between different workstations.

The following is a detailed introduction to PCB Buffer Machine:

Functions and functions:
It serves as an intermediate buffer or storage in the PCB production line.
It can temporarily store and cache PCB boards of various specifications and sizes to match the process flow of the production line.
Ensure that PCB boards do not accumulate excessively or interrupt production when transferred from one process to the next.

Main structure and working principle:
It consists of automatic loading and unloading mechanism, PCB storage shelves, conveyor belt and other components.
Manage the automatic input, storage and output of PCB boards through the computer control system.
Use mechanical arms or suction cups to grab PCB boards and store them on multi-layer shelves for caching.
When needed, the PCB board is taken out from the shelf and automatically transported to the next process.

Main performance indicators:
Cache capacity: Shelves with different levels and lengths can be configured according to actual needs.
Conveying speed: dozens of PCB boards can be cached/transported per minute.
Positioning accuracy: Able to accurately position the PCB board to avoid damage.
Applicable PCB size: can handle from small PCB to large PCB board.

Application scenarios:
Applied to automated SMT (surface mount) production lines.
Used as an intermediate buffer in PCB manufacturing, reflow soldering, testing and other processes.
It is widely used in electronic product manufacturing, communication equipment, aerospace and other industries.
Help production lines achieve flexible production and automation and improve production efficiency.

Advantages of PCB buffers include:

1.Balance the production line: By controlling the flow and buffering of PCBs, PCB buffer machines can balance the work speed and rhythm between different workstations on the production line, avoiding production bottlenecks and blockages between workstations.

2.Improve efficiency: By optimizing the flow and buffering of PCBs, PCB buffer machines can minimize production line downtime and waiting time, thereby increasing production efficiency and throughput.

3.Reduce errors: PCB buffer machines can effectively manage and control the order and status of PCBs, reducing production problems and defects caused by PCB chaos or errors.

Features

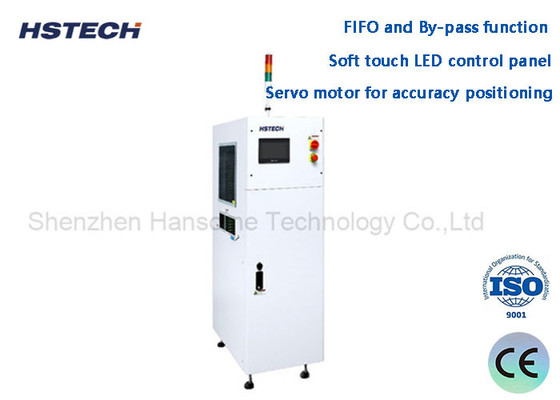

1, With FIFO and By-pass function, or cutomized to multiple function.

2, Soft touch LED control panel.

3, Using servo motor for accuracy positioning.

4, Leadscrew for width adjustment, smooth and stable.

5, The whole machine is small volume, won't take much factory space.

6, SMEMA communication interface, can be connected with other automation equipment.

7, Three color LED display for machine status.
