| Brand Name: | HSTECH |
| Model Number: | NS-600 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pcs per month |

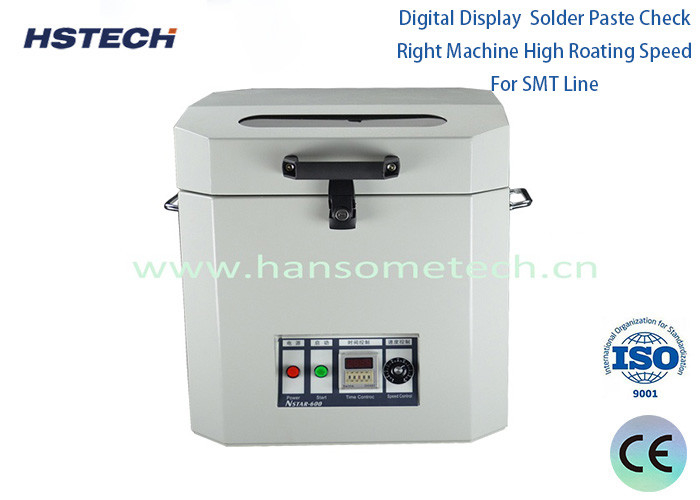

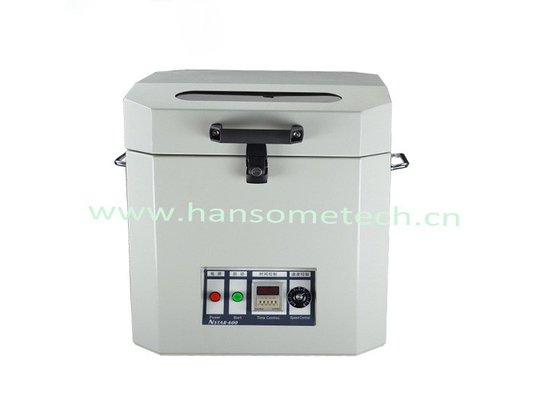

1400RPM Light Blink And Buzzer Warning Automatic Solder Paste Mixer Solder Paste Machine
Introduce
Solder Paste Machine is an automated equipment used to accurately apply solder paste on electronic circuit boards.
The following is a detailed introduction to Solder Paste Machine:
Functions and functions:
Automatically apply solder paste to the circuit board pad or solder joint position accurately to prepare for the subsequent SMT welding process.
It can operate according to the preset solder paste coating pattern according to the circuit board drawing or production document.
Ensure the thickness and position accuracy of solder paste and improve welding quality and production efficiency.
Main structure and working principle:
It consists of solder paste supply system, coating printer head, positioning calibration system and other components.
The computer control system instructs the print head to move accurately and apply solder paste on the surface of the circuit board.
Use a stencil, metal scraper and other mechanisms to evenly apply the solder paste on the pad.
Equipped with a high-precision positioning system to ensure that the solder paste coating position is consistent with the design.
Main performance indicators:
Coating accuracy: usually within ±12.5μm.
Coating thickness: Generally adjustable between 50-200μm.
Production efficiency: Thousands of circuit boards can be coated with solder paste per hour.
Applicable solder paste types: Suitable for various types of lead-free and lead-containing solder pastes.
Application scenarios:
Used in SMT (Surface Mount Technology) production lines for electronic product manufacturing.
It is widely used in the welding production of electronic equipment such as mobile phones, tablet computers, and computer motherboards.
It can also be used in other industrial production areas that require precise solder coating.
Features
1. This product has a high degree of automation, stable performance, simple and easy operation, high safety factor, and simple and quick maintenance;
2. Unique appearance design, beautiful, generous and practical, made with advanced baking paint technology;
3. The mixing principle is based on the revolution and rotation of the motor. There is no need to take out the refrigerated solder paste and de-ice it first;
4. The solder paste can be warmed up in a short time and stirred evenly before use;
5. Suitable for 500g solder paste of various brands, and can stir two cans at a time, saving mixing time and improving production efficiency;
6. During the mixing process, the solder paste box does not need to be opened, so that the solder paste will not oxidize or absorb moisture;
7. The enclosed mixing can fix the operating time, ensure the stability of the softness (Q-ness) of the solder paste, and mix the old and new solder pastes.
8. Place the solder paste at 45 degrees and rotate along the axis, so that the solder paste no longer adheres to the can lid;
9. Double safety device to ensure personal safety;
10. Stirring also has the effect of removing bubbles;
11. The dedicated control circuit fully considers the process control of solder paste stirring;
12. The rotation speed ratio has been proven in practice to avoid the impact of tin powder and excessive temperature rise on the quality of solder paste.
| Model: | NSTAR-600 | |||
| Wattage: | 60W | |||
| Power: | AC220V, 50Hz | |||
| Roating speed: | Primary rotating:1400RPM;Sencond rotating:400RPM | |||
| Working Capacity: | 500g*2jar; | |||
| Tin Pot's Size: | M diameterΦ60-Φ67standard one S diameterΦ53-Φ60(for choose, please contact us ) L diameterΦ67-Φ74(for choose, please contact us) |
|||
| Time Setting: | 0.1～9.9mins, adjust0.1min per time; 10～30mins, adjust1.0min per time |
|||
| Display & Caution: | LED digital display,light blink and buzzer warning | |||
| Machine Demension: | 410*410*490mm(W*D*H) | |||
| Packing Demension: | 420*420*500mm(W*D*H) | |||
| Net/Gross Weight: | 40KG/45KG | |||
