| Brand Name: | HSTECH |
| Model Number: | HS-250DULD |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

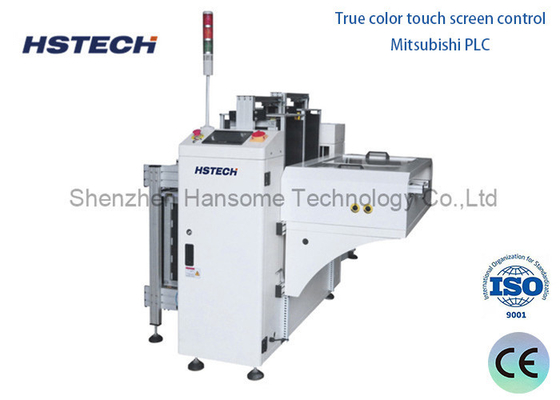

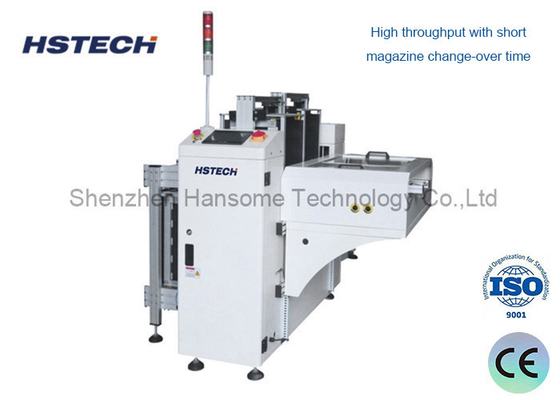

Tower Light Display Dual-Rail PCB Handling Equipment for Easy Monitoring
This machine is dual rail operation, used to collect the PCBs to the magazines.
Specification
| Model | HS-250DULD |
| PCB dimension | (50*50)~(350*250)mm |
| Magazine size | 355*320*565mm |
| PCB loading time | Around 6s |
| Magazine replace time | 30s |
| Power supply | AC100-230V,single Phase,max300A |
| Air supply | 4-6 bar, Max 10L/min |
| Transport height | 900±20mm |
| Transport direction | L to R,or R to L9(optional) |
| PCB thickness | Min 0.4mm |
| Magazine qty | top 1pc, down 1 pc, or customized |
| Step pitch options | 1-4(10mm pitch) |
| Machine dimension | 1460*1500*1200mm |
| Weight | Approx 210kg |
Features
1, True color touch screen control
2, Mitsubishi PLC
3, Magazine capacity: top 1, bottom 1, or customized
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9, Tower light display
10, SMEMA signal
Work description
According to the signal recognition, automatically collect the NG board and OK board respectively to two lifting crates; NGOK board collector and AOI on-line, after the AOI detection judgement of good (OK) and defective (NG) output different signals, signals sent to the lower NGOK collector, NGOK collector to receive signals transmitted by the AOI to make judgements, the PCB will be automatically sorted out! OK and NG material stored in the frame;
For example: AOI output OK signal through the NGOK judgement into the mobile push plate trolley directly into the OK lift trolley frame; AOI output NG signal through the NGOK judgement into the mobile trolley and transfer to the back of the NG lift trolley frame.
