| Brand Name: | HSTECH |
| Model Number: | HS-250DULD |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

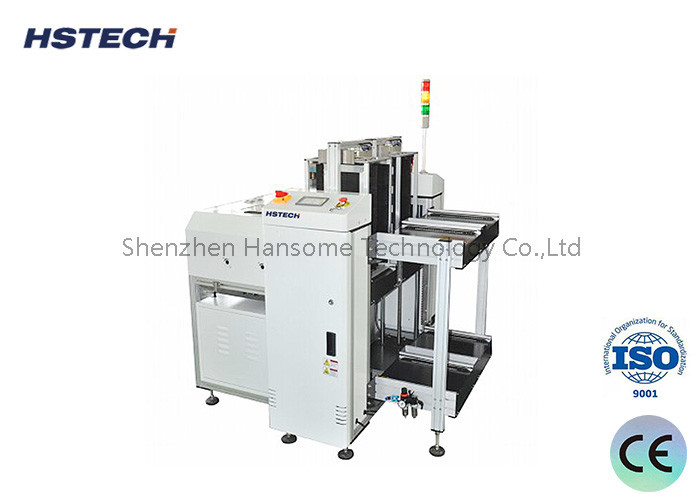

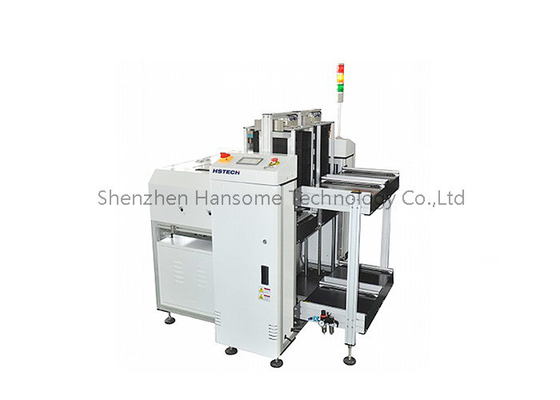

HS-250DULD Dual-track NGOK Unloader for PCB Handling Equipment
This machine is dual rail operation, used to collect the PCBs to the magazines.
Specification
| Model | HS-250DULD |
| PCB dimension | (50*50)~(350*250)mm |
| Magazine size | 355*320*565mm |
| PCB loading time | Around 6s |
| Magazine replace time | 30s |
| Power supply | AC100-230V,single Phase,max300A |
| Air supply | 4-6 bar, Max 10L/min |
| Transport height | 900±20mm |
| Transport direction | L to R,or R to L9(optional) |
| PCB thickness | Min 0.4mm |
| Magazine qty | top 1pc, down 1 pc, or customized |
| Step pitch options | 1-4(10mm pitch) |
| Machine dimension | 1460*1500*1200mm |
| Weight | Approx 210kg |
Features
1, True color touch screen control
2, Mitsubishi PLC
3, Magazine capacity: top 1, bottom 1, or customized
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9, Tower light display
10, SMEMA signal
