Introduce

UV Laser Marking Machine is a device that uses UV laser technology for marking and engraving. It uses high-energy UV laser beams to non-contactly mark material surfaces and is suitable for a variety of materials and applications.

The following is a general introduction to UV Laser Marking Machine:

Working principle: UV Laser Marking Machine uses ultraviolet laser beam as the energy source to achieve marking and engraving by performing photochemical or thermochemical reactions on the material surface. UV lasers have shorter wavelengths (typically between 200 and 400 nanometers) and are able to concentrate energy in a smaller area, allowing for high-resolution and precise marking.

Application materials: UV Laser Marking Machine is suitable for a variety of materials, including plastic, glass, ceramics, metal, wood, paper, etc. It can mark, engrave, engrave, punch and other operations on the surface of these materials. Since UV lasers have a small heat-affected area, they are suitable for processing heat-sensitive materials.

Application fields: UV Laser Marking Machine is widely used in multiple industries, such as electronics, medical, automotive, aerospace, jewelry, packaging, etc. It can be used for marking product logos, serial numbers, barcodes, graphics, text, etc. Because UV lasers can achieve high-precision and miniaturized marking, they are also widely used in the fields of microelectronics and micromachining.

Advantages: UV Laser Marking Machine has some advantages. First, UV lasers can achieve high-resolution marking, enabling detailed patterns and text in smaller areas. Secondly, UV laser has a smaller heat-affected area, which can reduce material deformation and damage. In addition, UV laser also has the advantage of being non-contact and will not cause physical damage to the material surface.

Features

1, 3,5W UV laser output power.

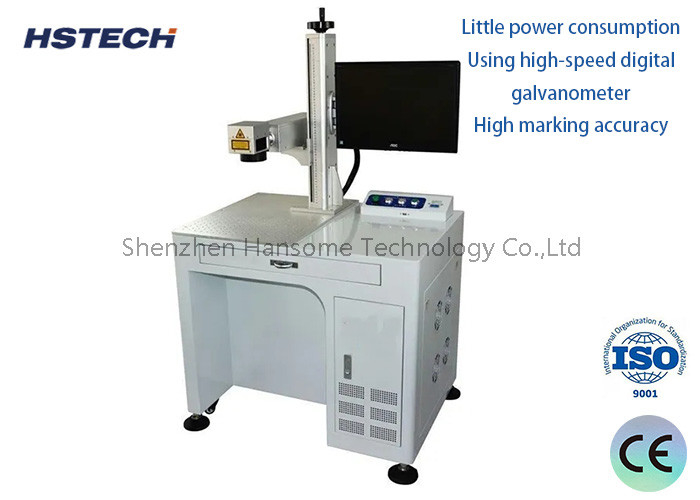

2, Little power consumption, energy consumption is 500 watts.

3. Using high-speed digital galvanometer, it is 2-4 times faster than normal models.

4. High marking accuracy at ±0.003MM, and the marking content coordinates can be fine-tuned.

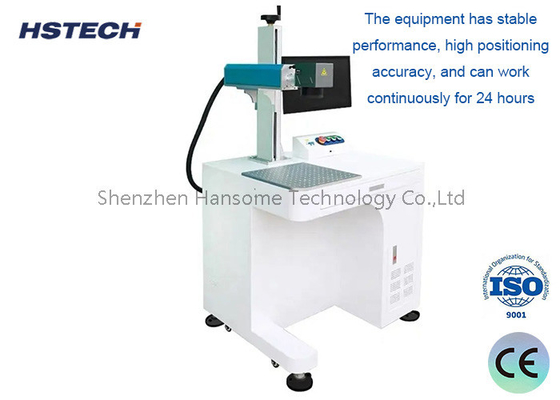

5. The equipment has stable performance, high positioning accuracy, and can work continuously for 24 hours.

6. The equipment marking software can support AI, PLT, CAD (DXF), CDR, and other formats of vector graphics, and can be imported indirectly or directly.

7. Simple and the marking software can still be upgraded for free after guarantee.

8. Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.

Specification

Application

Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.
