| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

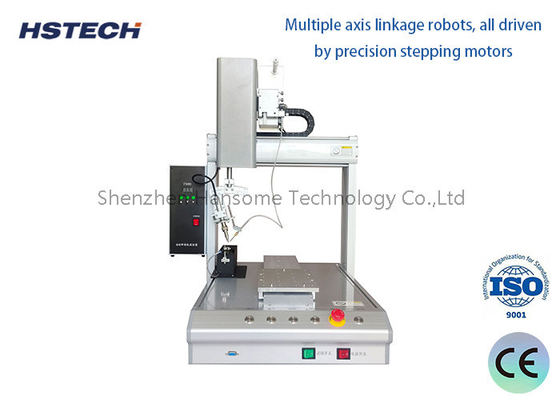

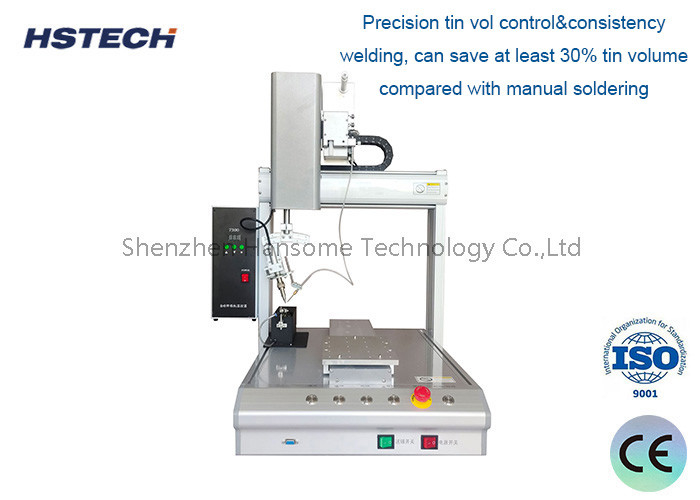

High-precision Auto Soldering Robot with Hiwin Linear Guide
Introduction
This automatic desktop type soldering machine is a hot sale product, which using the teaching box for manual programing, adopt the high quality stepper motor and timing belt to driving the machine. The machine has the options for single or doulbe working station, also the traveling range standard is 300*300mm, it can be customized to fit customer's product requirement.
Application
1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
5. precision machinery/electrical products :VTR.
Features
1. 4-axis operation, X/Y/Z and R rotational movement, achieving multi angle welding.
2. The machine has an automatic cleaning function, and the soldering iron/tip is nitrogen free, which is very safe and environmentally friendly,
3. Taiwan brand sea surface temperature linear guide rail is used for machine tool moving systems, with high precision and accuracy.
4. The machine control system can be made using a very mature control board, and PLC can also be used.
5. Align the key position of the product with the iron head as the base point, press the enter key, and the program will automatically generate the point in the system, and then set the data for that point, etc.
6. Adopting high-precision stepper motors and synchronous belt drive systems, advanced motion control algorithms, effectively improving motion positioning accuracy and repeatability.
7. The machine has an automatic cleaning function, which can make soldering more stable and extend the service life of the soldering iron.
8. Equipped with a handheld LCD teaching pendant, it is easy to program, highly accurate, and easy to learn.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
