| Brand Name: | HSTECH |
| Model Number: | HS-NK250 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

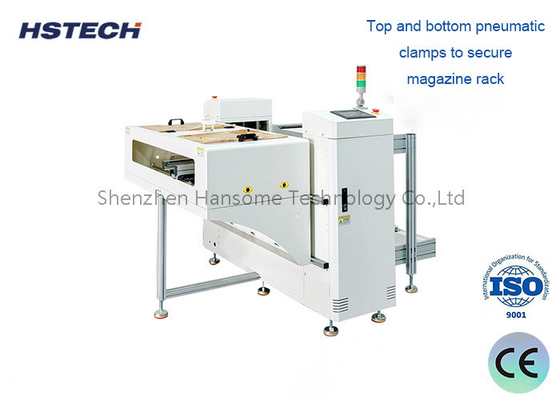

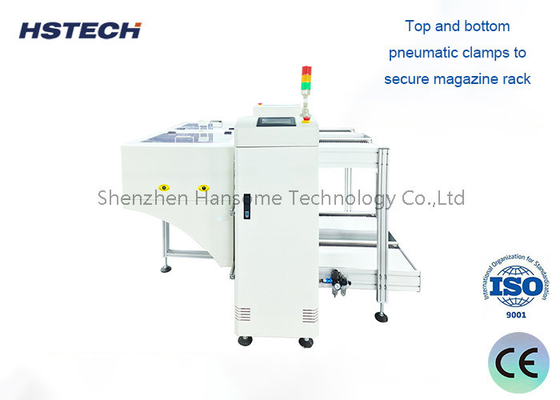

SMEMA Signal Tower Light PCB Handling Equipment NG OK PCB Unloader With Dual Magazine Collecting
Introduce
NG OK PCB Unloader is a device used in automated electronic manufacturing processes to unload defective (NG) and good (OK) printed circuit boards (PCBs) from the production line.
The main function of NG OK PCB Unloader is to separate unqualified PCB (NG) and qualified PCB (OK) based on the judgment results of the electronic detection system, and move them out of the production line for subsequent processing and classification.
NG OK PCB Unloader usually has the following features and functions:
1.Unloading and separation function: NG OK PCB Unloader uses automated mechanical devices to unload PCBs on the production line from conveyor belts or other conveying systems. It can send unqualified PCBs and qualified PCBs to different exits or storage areas respectively according to the results of the electronic inspection system.
2.Sorting and classification capabilities: NG OK PCB Unloader can classify and store defective (NG) and good (OK) PCBs according to preset rules. It can send the PCB to the corresponding storage location or outlet based on the logo on the PCB, electronic test results or other standards.
Transport and Stacking: NG OK PCB Unloader usually has the ability to transport and stack PCBs after unloading them. It can arrange PCBs in a certain stacking manner to facilitate subsequent processing and management.
3.Speed and Accuracy: NG OK PCB Unloader features high-speed and precise operation, capable of unloading and separating PCBs quickly and accurately in a short time. This helps improve production efficiency and reduce human errors in the manufacturing process.
4.Connecting to other equipment: NG OK PCB Unloader can usually be connected to other automated equipment and systems, such as electronic inspection systems, PCB stackers, storage systems, etc. This connectivity makes the entire manufacturing process more coherent and efficient.
Specification
| Model | HS-NK |
| PCB dimension | (50*50)~(350*250)mm |
| Magazine size | 355*320*565mm |
| PCB loading time | Around 6s |
| Magazine replace time | 30s |
| Power supply | AC100-230V,single Phase,max300A |
| Air supply | 4-6 bar, Max 10L/min |
| Transport height | 900±20mm |
| Transport direction | L to R,or R to L9(optional) |
| PCB thickness | Min 0.4mm |
| Magazine qty | top 1pc, down 1 pc, or customized |
| Step pitch options | 1-4(10mm pitch) |
| Machine dimension | 1460*1500*1200mm |
| Weight | Approx 210kg |
Features
1, True color touch screen control
2, Panasonic PLC
3, Magazine capacity: top 1, bottom 1, or customized
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9, Tower light display
10, SMEMA signal
