| Brand Name: | HSTECH |
| Model Number: | HS-460DT |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

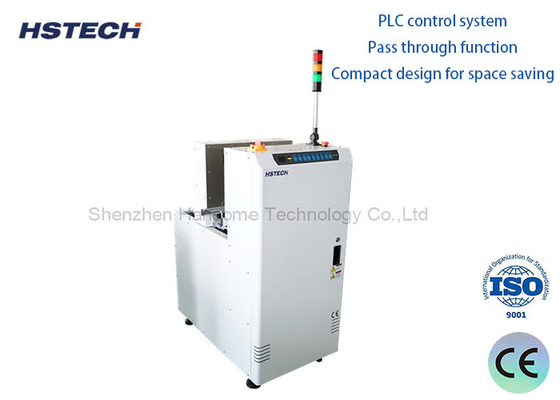

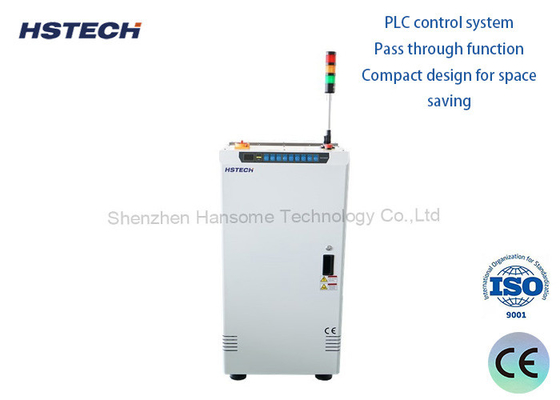

Three Color Tower Light Bare Board Destacker With Panasonic PLC Control For SMT Line
Introduce
A Bare Board Destacker is a device used in the electronics manufacturing industry to separate individual bare boards from stacks of bare boards (unassembled printed circuit boards) and feed them to subsequent production lines.
The following are the general features and functions of Bare Board Destacker:
1.Separation function: The main function of the Bare Board Destacker is to separate the stacked bare boards and provide them to the subsequent manufacturing process. It effectively separates bare boards from the stack, ensuring each bare board can be processed individually by subsequent equipment.
2.Automated operation: Bare Board Destacker is usually equipped with an automated control system that can automatically perform the operations of detaching and providing bare boards. It can operate automatically according to preset parameters and procedures, reducing manual intervention and improving production efficiency.
3.Stack Management: Bare Board Destacker can efficiently manage and handle stacked bare boards. It usually has a stacking conveyor or grabbing mechanism to grab and extract bare boards from the stack while ensuring the stability and reliability of the stack.
4.Bare Board Destacker: To ensure accurate separation of bare boards, Bare Board Destacker usually has positioning and alignment functions. It can use sensors or vision systems to detect and position bare boards to ensure correct separation location and orientation.
5.Fault Detection and Safety Protection: Some Bare Board Destacker devices are equipped with fault detection and safety protection features. They can monitor and detect abnormalities during bare board separation,
Specification
| Model | HS-330DT | HS-460DT |
| PCB Size | 50*50~460*330 | 50*50~530*460 |
| Usage | Loading the bare boards | |
| PCB thickness | Min 0.6mm | |
| Board loading time | 6s | |
| Air pressure | 4-6bar,max30L/min | |
| Transport direction | L-R or R-L(optional) | |
| Capacity | 10~150pcs | |
| Machine height | standard(900±20mm) | |
| Machine size | 600*820*1200mm | 700*950*1200mm |
Features
1, Panasonic PLC control.
2, Touch Screen Control, Step motor.
3, Full sheet metal structure,cooling soldering, computer white surface.
4, Uninterrupted loading, available for By-pass function.
5, Fast PCB feeding time, around 6 sec.
6, Smooth and parallel width adjustment(hand lead screw control).
7, Three color tower light display.
8, Whole machine in time error detection.
9, SMEMA communication interface,standard 4 pin wire.
About Packaging
COMPANY PROFILE
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer, We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of sMT/THT production line board handling equipment.We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same time,our experienced engineering team always grasps smart factory's developing directionupdates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
