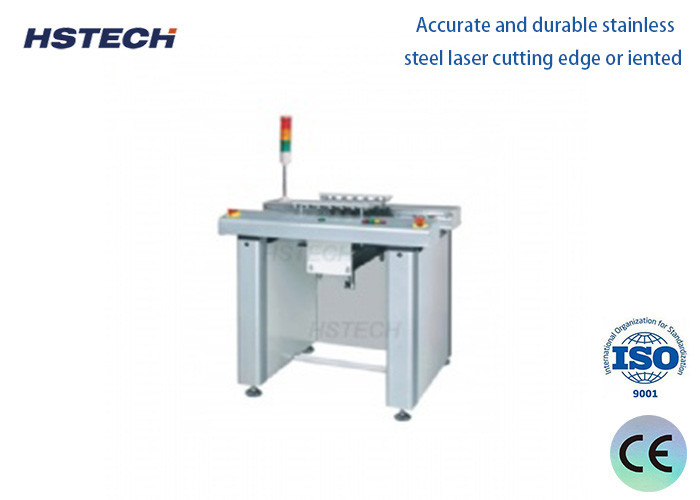

Hand crank width adjustment Linking Conveyor PCB Handling Equipment with 1500mm Length

Hand crank width adjustment Linking Conveyor PCB Handling Equipment with 1500mm Length

Introduce
Linking Conveyor is a conveying equipment used in the electronics manufacturing industry. It is often used to transfer PCBs (Printed Circuit Boards) from one device to another to realize the connection of automated production lines.

The following are the general features and functionality of Linking Conveyor:

1.Connection function: The main function of the Linking Conveyor is to connect different equipment on the production line, such as placement machines, reflow ovens, wave soldering machines, etc. It provides a smooth conveying channel to transfer PCBs from one work area to another, ensuring the continuity and smoothness of the production line.

2.Automated conveying: Linking Conveyor is usually equipped with an automated conveying system that can convey PCBs from one location to another according to preset speeds and beats. This makes the PCB transfer process more efficient and accurate, reducing the need for manual operations.

3.Adjustment and Adaptability: Linking Conveyors often feature adjustable height and width to accommodate different sizes and types of PCBs. This allows it to adapt to PCBs of various specifications and be flexibly adjusted according to production needs.

4.Transportation stability: Linking Conveyor provides a stable transportation platform to ensure the stability and reliability of PCB during transportation. It is usually equipped with positioning guides and clamps to accurately position and fix the PCB to prevent the PCB from shifting or tilting during transfer.

5.Data logging and traceability: Some Linking Conveyors have data logging and traceability capabilities that can record the transfer data and process parameters of each PCB. This helps with quality control and production traceability, as well as troubleshooting and improvements where needed.

Features

1.Programmable Logic Controller.

2.Hand crank width adjustment

3, Economic space.

4.Use stainless steel screw,smooth and parallel width adjustment

5.Left to right travel,or right to left, front rail fixed

6.ESD working table.

7, Height adjustable and stable feet cup location.

8, Speed control.

9.SMEMA compatible.

Specification
