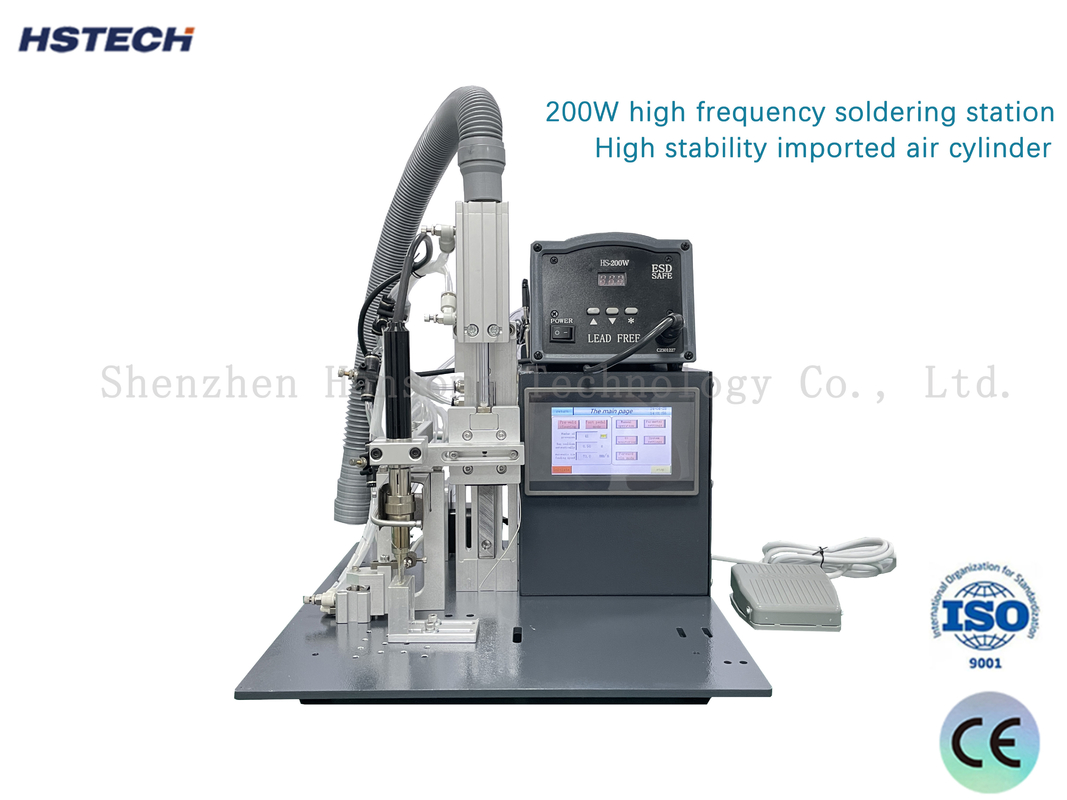

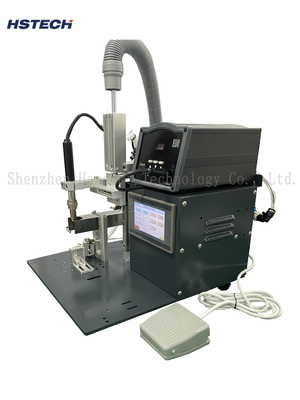

Touch-Screen Semi-Auto Soldering Station Automatic Soldering Robot With Pedal Switch

Touch-Screen Semi-Auto Soldering Station Automatic Soldering Robot With Pedal Switch

Introduction

Semi-Auto Soldering Station is a device used for electronic welding, which provides a semi-automatic welding solution.

The following are the general features and functions of semi-automatic welding stations:

1.Welding control: The semi-automatic welding station is equipped with a welding control system that can provide functions such as temperature control and welding time control. This enables operators to adjust and control welding parameters according to welding requirements to ensure welding quality and consistency.

2.Soldering Handle/Soldering Iron: Semi-automatic soldering stations are often equipped with a soldering handle or soldering iron for performing soldering operations. Welding handles usually have heating elements and temperature sensors that provide the required welding temperature and heat.

3.Soldering station/stand: Semi-automatic welding stations are usually equipped with a soldering station or stand for placing and fixing electronic components or welding objects to be welded. Welding stations typically have high-temperature, corrosion-resistant surfaces to contain the heat and welding materials generated during the welding process.

4.Auxiliary tools: Semi-automatic soldering stations may also be equipped with some auxiliary tools, such as solder supply devices, solder cleaning devices, solder shears, etc. These tools can improve welding efficiency and accuracy and simplify operating steps during the welding process.

5.Safety features: In order to ensure the safety of operators, semi-automatic welding stations are usually equipped with some safety features, such as overheating protection, anti-slip base, anti-electric shock device, etc. This helps reduce potential safety risks and accidents.

Technical details



Product Name	Semi-auto soldering station
Model No.	HS-668
Power supply	Single phase, 220V 50/60Hz

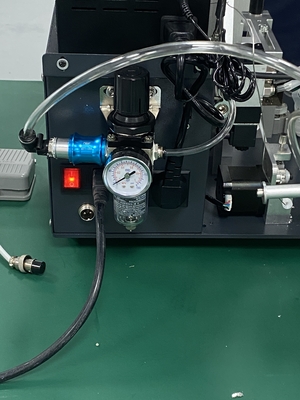

Air pressure	0.2-0.6MPa(Use clean dry air)
Control mode	PLC+touch screen
Temperature	(-10)-(+60℃)No wind, no dust
Soldering control switch	Pedal switch
Machine size	L410*W350*H500MM
Weight	15 KG



Maintenance



1. The waste produced by the machine in the course of work should be cleaned up in time to avoid

obstruction and cause the machine to run badly.

2. After each shift, first clean the environment, so that the ground dust-free, clean. Clean the

equipment again, including welding platform surface, moving shaft, welding head, etc. No

3. The sliding part of the machine is lubricated once a week to ensure smooth sliding.

4. Machine parts secured.

5. The fixture and fixture holder are cleaned every 4 hours.

6. The soldering tip is maintained every 2 hours. Observe the loss, service life about 20000-35000

points, timely notify the production line technician to replace the soldering tip.At present, all

sold soldering tips may be oxidized or perforated due to tin wire damage is more common.

Please replace the tin wire in time if you can not change the tin material and can not reach the

above service life. Please understand above.



Product Details

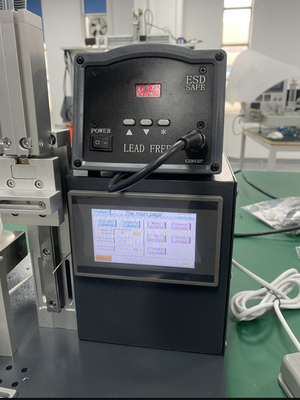

PLC touch-screen all-in-one machine

Soldering tips of different sizes can be configured
