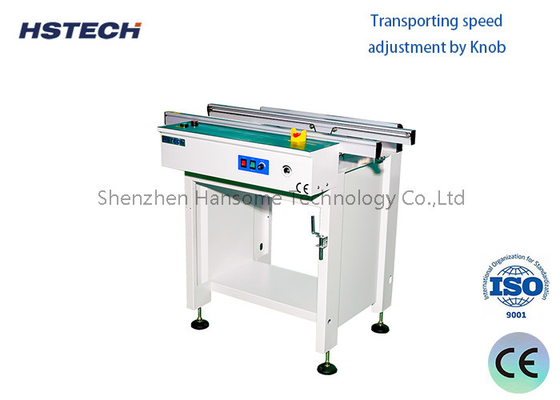

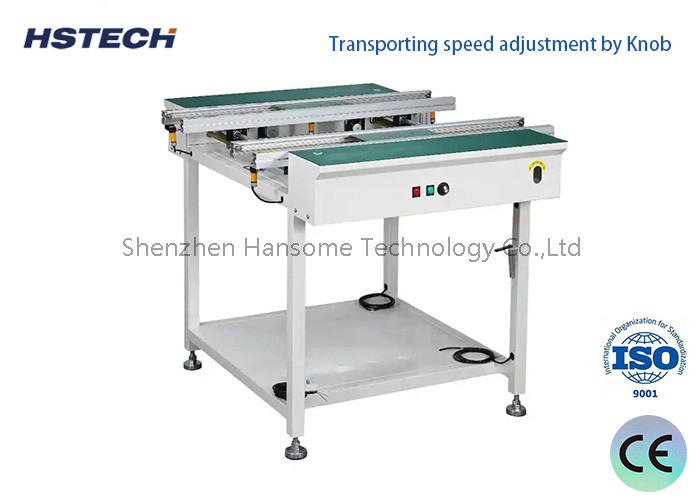

Aluminum Alloy LED Button Control SMT Conveyor PCB Handling Equipment Length Available

Aluminum Alloy LED Button Control SMT Conveyor PCB Handling Equipment Length Available

Introduce
The SMT (Surface Mount Technology) connection station is a piece of equipment used in the SMT production line in electronic manufacturing. It is used to support and handle the connection of PCB (Printed Circuit Board) during the SMT process. and transfer.

The following are the general working principles and characteristics of the SMT connection station:

PCB support and positioning: The SMT connection table provides a flat surface and support structure to support the PCB and ensure its stability during the connection process. It usually has positioning guides and clamps for accurately positioning and fixing the PCB to ensure precise assembly and soldering.

Automated transfer: SMT docking stations are often equipped with conveyor belt systems that automatically transfer PCBs from one work area to another. This can include feeding materials from a feeder to an assembly machine, or transferring assembled PCBs to subsequent processes such as welding machines or inspection equipment.

Adjustment and adaptability: SMT docking stations often have features such as adjustable height, width, and angle to accommodate different sizes and types of PCBs. This enables it to handle a variety of PCB specifications and be flexibly adjusted according to production needs.

Static protection: Since electronic components in the SMT process are sensitive to static electricity, SMT connectors usually have electrostatic protection functions, such as static dissipative materials, grounding devices, and anti-static coatings. This helps prevent damage to PCBs and electronic components from electrostatic discharge.

Data recording and traceability: Some SMT docking stations have data recording and traceability functions that can record the production data and process parameters of each PCB. This helps with quality control and production traceability, as well as troubleshooting and improvements where needed.

Features

1, Stable stainless steel structure.

2, Hand crand width adjust.

3, Black transpoting belt, 1.0mm thickness.

4, Aluminum alloy transporting rail.

5, LED button control, speed adjustment motor.

6, Optional function available, tower light, inspection, dust cover, etc.

7, Customized requirement available.

8, Length available, 600mm, 1000mm, 1500mm, or optional.

9, SMEMA signal for inline connection.

Specification
