| Brand Name: | HSTECH |
| Model Number: | HS-250DULD |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

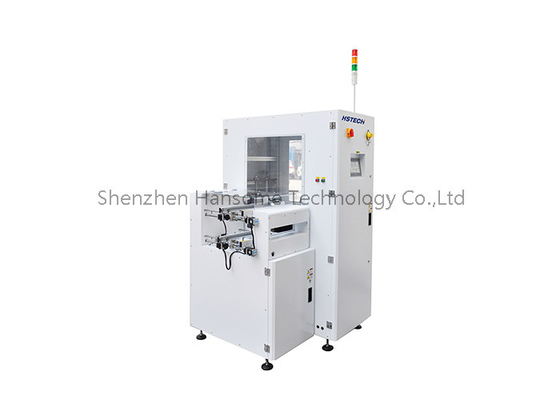

Tower Light Display Dual Rail PCB Unloader NG OK Unloader PCB Handling Equipment With SMEMA Signal
Introduce
Dual Rail PCB Unloader is a device used in PCB (Printed Circuit Board, printed circuit board) assembly production lines to automatically unload PCB boards.
The following are the general working principles and features of Dual Rail PCB Unloader:
1.Dual Rail Design: Dual Rail PCB Unloader usually has a dual rail design, one track is used to unload the completed PCB boards from the production line, and the other track is used to return the empty transfer boards to the starting point of the assembly line for continued use.
2.Automatic unloading: This equipment is equipped with automation functions to unload PCB boards from the assembly line to designated locations through conveyor belts or other robotic arm systems. This can be a storage area, an inspection station or the next production stage.
3.Stable and reliable: Dual Rail PCB Unloader has a stable structure and precise positioning system to ensure the stability and accuracy of PCB boards during unloading. This helps avoid damage or misuse.
4.Transport and Alignment: The equipment usually has a conveyor belt system that reliably transports the PCB boards and aligns them into the correct position. This ensures accurate unloading and subsequent processing of the PCB board.
5.Programmable Control: The Dual Rail PCB Unloader is equipped with a control system that can be programmed and adjusted as needed. Operating parameters such as conveying speed, unloading position and alignment can be set according to different PCB board sizes and production requirements.
Specification
| Model | HS-250DULD |
| PCB dimension | (50*50)~(350*250)mm |
| Magazine size | 355*320*565mm |
| PCB loading time | Around 6s |
| Magazine replace time | 30s |
| Power supply | AC100-230V,single Phase,max300A |
| Air supply | 4-6 bar, Max 10L/min |
| Transport height | 900±20mm |
| Transport direction | L to R,or R to L9(optional) |
| PCB thickness | Min 0.4mm |
| Magazine qty | top 1pc, down 1 pc, or customized |
| Step pitch options | 1-4(10mm pitch) |
| Machine dimension | 1460*1500*1200mm |
| Weight | Approx 210kg |
Features

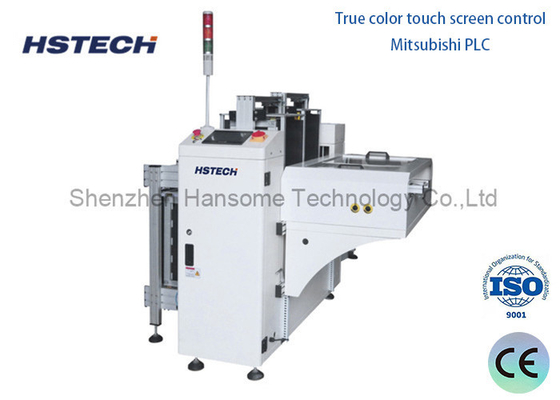

1, True color touch screen control
2, Mitsubishi PLC
3, Magazine capacity: top 1, bottom 1, or customized
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9, Tower light display
10, SMEMA signal
Application scenarios
Backend of SMT production line: In the surface mount technology (SMT) production line, various electronic components are mounted on the PCB board by the placement machine, and then after the soldering process such as reflow soldering, the PCB board will reach the double-track PCB unloader through the transmission track. At this time, the unloader will unload the PCB board with soldered components from the SMT production line, and then transfer it to the next inspection link, such as AOI (automatic optical inspection) equipment, to check the soldering quality and whether the component placement is correct.
Integration with automated production lines: The double-track PCB unloader can be well integrated with the entire automated PCB production system. It can receive instructions from the production line control system through communication interfaces (such as industrial Ethernet interface or RS-485 interface, etc.), such as starting unloading, stopping unloading, adjusting track width, etc. In addition, it can also feedback its own status information (such as whether the equipment is operating normally, whether there is a fault, the number of unloaded PCB boards, etc.) to the production line control system to realize intelligent management of the entire production process.
