| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

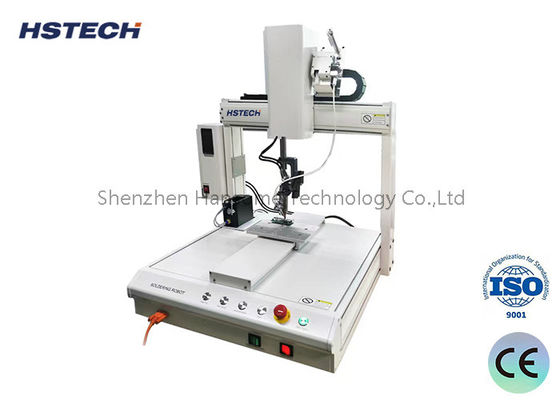

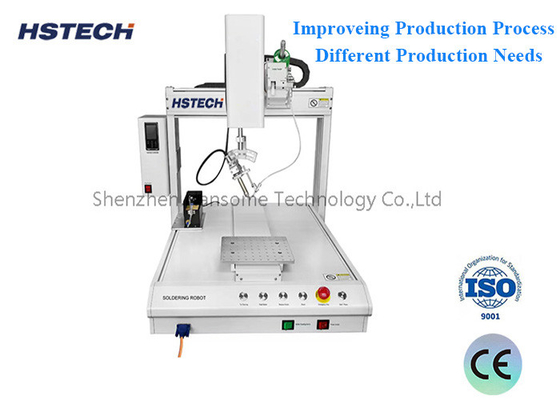

4 Axis Automatic Soldering Robot with Hiwin Linear Guide for General Consumer Goods
Introduction
This automatic desktop type soldering machine is a hot sale product, which using the teaching box for manual programing, adopt the high quality stepper motor and timing belt to driving the machine. The machine has the options for single or doulbe working station, also the traveling range standard is 300*300mm, it can be customized to fit customer's product requirement.
Features
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
