| Brand Name: | HSTECH |
| Model Number: | HS-C600 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
Max 390mm PCB Width SMEMA Signal PCB Handling Equipment SMT Conveyor With ESD Flat Belt
Introduce
The SMT conveyor is suitable for the connection between SMT and AI production lines. It can also be used for PCB buffering, inspection, testing or manual insertion of electronic components. It can also be used for signal connection with other equipment. The connecting platform is divided into single track, double track, telescopic lift. Today we will introduce the working principle and product features of the docking station.
Features
1, Thickness stable stainless steel machine body.

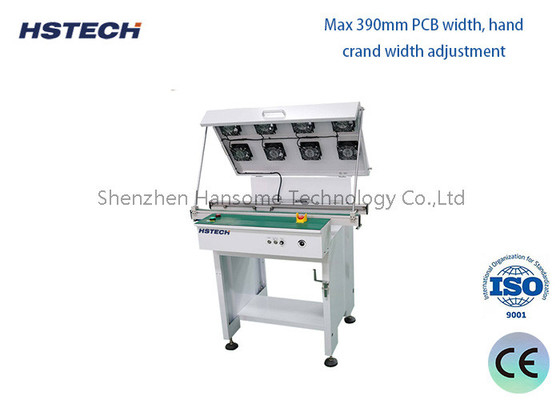

2, Max 390mm PCB width, hand crand width adjustment.
3, Transporting speed adjustment by Knob.
4, ESD green color work table.
5, Aluminum alloy transporting rail.
6, LED button control, speed adjustment motor.

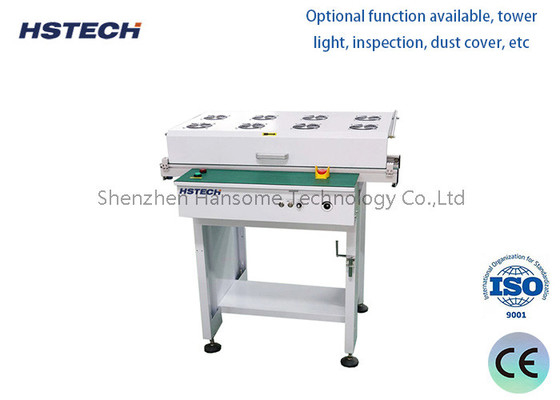

7, Optional function available, tower light, inspection, dust cover, etc.
8, Customized requirement available.
9, Length available, 600mm, 1000mm, 1500mm, or optional.
10, SMEMA signal for inline connection.
Specification
| Model | HS-C600/HS-C600S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
1.Mainly used in SMT production line equipment and equipment link between the transfer, stop board function.
2. According to the need to increase the detection, function switching, NG, data memory and other functions.
3. High-strength equipment body to ensure the stability of the equipment.
4. Smooth stainless steel screws can adjust the width of the rail.
5. Use special aluminium slots to make the transfer track to prevent pcb jamming.
6. The control system is PLC controlled with standard SMEMA signal interface.
8. Worktable plate, lighting, static dust cover, cooling fan can be added as required.
9. Various forms can be customised according to the customer's site size planning or product production requirements, so as to facilitate the customer to choose the most reasonable structure.
