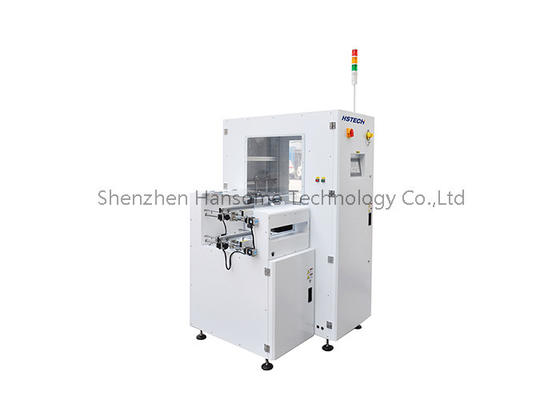

Max 15L/Min PCB Buffer Machine PCB Handling Equipment Vertical For SMT Production Line
Introduce
It is used to alleviate the production speed problem of front-end equipment. The front-end equipment is too fast or the back-end equipment is abnormal, causing product PCBA or PCB accumulation. The temporary storage machine can automatically store the products produced by the front-end equipment.
Features
1.Use friendly soft touch screen control panel.
2. FIFO,LIFO,Loader, unloader, Reject mode selected.
3.Fast, smooth and precise indexing.
4.Inner PCB rack to stock PCBs, Max can stock 25pcs PCBs.
5.Machine Panel will show NG or OK PCB for each layer.
6.Upper conveyor platform for double checking NG PCBs.
7.Threshold's system provided.
8.SMEMA compatible.
Specification
| MODEL | HS-HC250 | HS-HC250 |
| EFFICIENT PCB SIZE | 50*50~350*250mm | 50*50~455*330mm |
| MACHINE SIZE | 1250*1200*1600mm | 1460*1360*1600mm |
| WEIGHT | 200kg | 230kg |
| MODEL | HS-HC250 | HS-HC250 |
| EFFICIENT PCB SIZE | 50*50~350*250mm | 50*50~455*330mm |
| MACHINE SIZE | 1250*1200*1600mm | 1460*1360*1600mm |
| WEIGHT | 200kg | 230kg |
TECHNICAL PARAMETERS
| FUNCTION | This unit is used as a buffer between SMD machine and Inspection equipment. |
| Transport Height | 910±20mm |
| Transportation Direction | L~R, or R~L |
| Board Collecting | Lifting PCB rack |
| Conveyor Transporting Speed | Adjustable |
| Rail Fixed Side | Front side or rear side |
| Operation Side | Front side |
| PCB Thickness | Min 0.6mm |
| Pitch Selection | 1-4(10mm pitch) |
| Power Supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| PCB Stock Capacity | Max 25pcs |
| Magazine | No |
| Signal | SMEMA |
| Options | Automatic width adjustment |
