| Brand Name: | HSTECH |
| Model Number: | HS-668 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
|

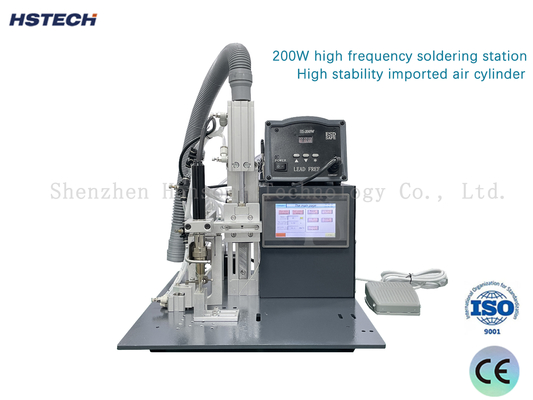

Product Name
|
Semi-auto soldering station
|
|
Model No.
|
HS-668
|
|
Power supply
|
Single phase, 220V 50/60Hz
|
|

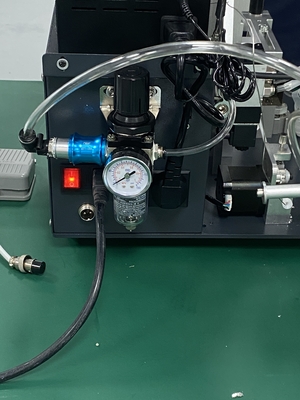

Air pressure
|
0.2-0.6MPa(Use clean dry air)
|
|

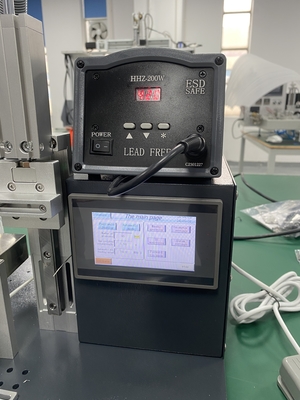

Control mode
|
PLC+touch screen
|
|
Temperature
|
(-10)-(+60℃)No wind, no dust
|
|
Soldering control switch
|
Pedal switch
|
|
Machine size
|
L410*W350*H500MM
|
|
Weight
|
15 KG
|
1.Function: Semi-automatic soldering machine is mainly used to solder electronic components to PCB, including surface mount (SMT) components, plug-in components, etc. It can realize functions such as automatic supply of solder wire, heating and temperature control of the soldering iron, and triggering and control of welding operations.

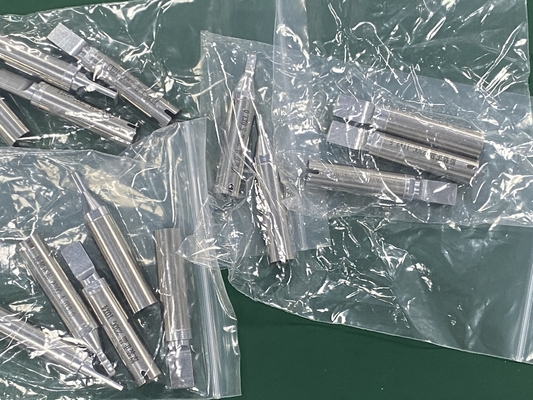

2.Welding method: Semi-automatic soldering machines usually use soldering iron tips or hot air guns and other tools for welding operations. Soldering iron tips are usually used for soldering small components, while heat guns are suitable for soldering large components or when larger amounts of heat are required. Welding methods can be wave soldering, hot air soldering, soldering iron welding, etc.
3.Control system: The semi-automatic soldering machine is equipped with a control system, including temperature control, time control, welding parameter setting and other functions. Operators can adjust and set parameters according to welding requirements to ensure welding quality and consistency.
4.Automated operation: Although called a semi-automatic soldering machine, it provides a certain degree of automated operation. During the welding process, the operator usually needs to place the component on the PCB and trigger the welding operation. The rest of the tin supply, heating, and welding processes are usually completed automatically by the equipment.
5.Solder quality control: Semi-automatic soldering machines usually have solder quality control functions, such as detecting soldering temperature, solder joint quality, etc. This helps improve welding reliability and consistency and reduces welding defects.
6.Safety protection: In order to ensure the safety of operators, semi-automatic soldering machines are usually equipped with safety devices, such as heat-sensitive protection, protective covers and emergency stop buttons.
