3 Color Tower Light 90 180 Degree PCB Turn Conveyor PCB Handling Equipmentfor PCBs Flow Direction

3 Color Tower Light 90 180 Degree PCB Turn Conveyor PCB Handling Equipmentfor PCBs Flow Direction

Introduce

PCB Turn Conveyor is a device used in the electronic manufacturing process to turn or change the transmission direction of printed circuit boards (PCBs) on the production line.

The following is a general introduction to PCB curve conveyor:

Function: The main function of the PCB turning conveyor is to achieve steering or change the transmission direction on the PCB production line. It is used to transfer PCBs from one transfer direction to another to meet specific production needs.

Turning method: PCB turning conveyors usually use transmission mechanisms such as conveyor belts, rollers or chains to turn the PCB board from one direction to another by adjusting the shape and layout of the transmission mechanism. It can achieve right-angle turns, curved turns or other specific angle turns.

Transmission adjustment: PCB turning conveyors usually have adjustment functions that can flexibly adjust the transmission path and turning angle according to the size and production needs of the PCB board.

Automated operation: PCB curve conveyors are usually equipped with automated control systems that perform automatic operations through sensors, motors and other equipment. It can be synchronized with other equipment or production lines to achieve seamless transfer and steering functions.

Safety protection: In order to ensure the safety of operators and avoid damage to PCB boards, PCB curve conveyors are usually equipped with safety devices, such as protective covers, emergency stop buttons and sensors.

System integration: PCB curve conveyor can be integrated with other electronic manufacturing equipment (such as printing machines, placement machines, etc.) to form a complete automated production line.

Features

1, Enclosed design with built-in torque limiter ensure high level

of safety.

2, Top safe cover can be opened for each access to hardware during

Maintenance.

3, Use friendly control button.

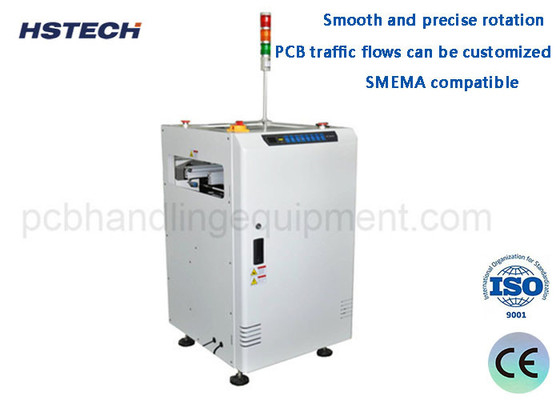

4, Smooth and precise rotation.

5, Minimize the transfer gap between conveyors.

6, PCB traffic flows can be customized.

7, Smooth and parallel width adjustment(lead screw).

8,SMEMA compatible.

Specification
