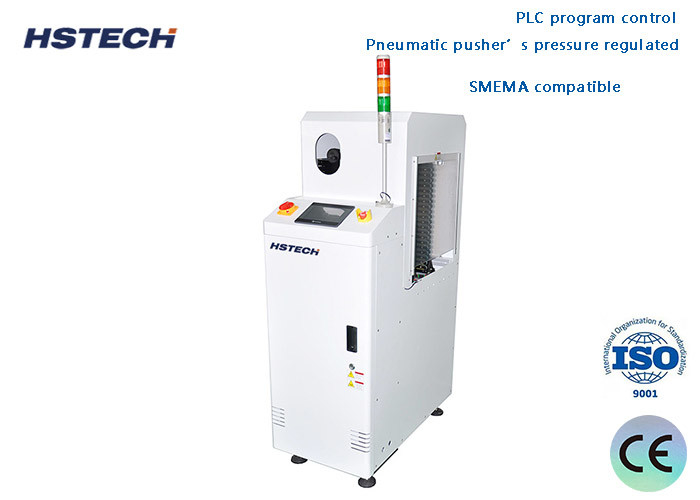

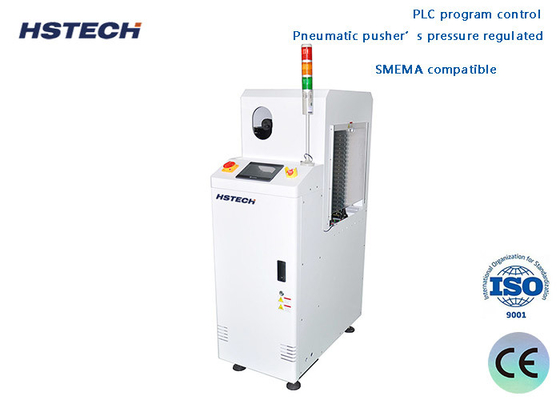

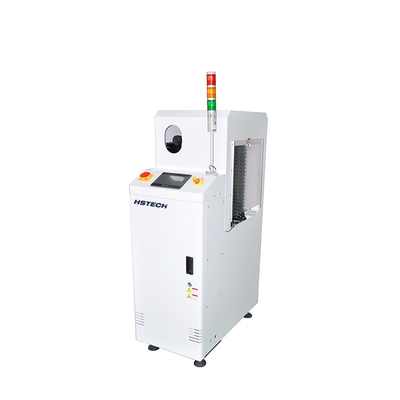

High Quality Touch Screen PCB Handling Equipment PCB Buffer With SMEMA Compatible
Introduce
PCB buffer is a device used to stabilize and adjust the transfer speed and position of printed circuit boards (PCBs) on the production line. It is widely used in electronic manufacturing processes, especially in PCB assembly and surface mount (SMT) processes.
General introduction to PCB buffer:
1.Function: PCB buffer machine is mainly used to balance and adjust the transmission speed of PCB boards on the production line to avoid problems caused by too fast or too slow transmission on the production line. It can act as a buffer to transfer PCB boards from the previous process to the next process to ensure the continuity and stability of the production line.
2.Transport control: PCB buffer machines transport PCB boards from one location to another through a transport system, such as a conveyor belt or roller. It is usually equipped with sensors and control systems to monitor and adjust the transfer speed to ensure smooth transfer and positioning of the PCB board.
3.Buffer adjustment: PCB buffer machine can adjust the length and capacity of the buffer according to the needs of the production line. This can accommodate different production speeds and PCB board sizes.
4.Automated operation: PCB buffer machines usually have automated operation functions, including automatic feeding, transmission, positioning and discharging. This can reduce manual operations and improve production efficiency.
5.PCB protection: PCB buffers usually use non-contact or low-contact methods during transmission to avoid damage or contamination of the PCB board.
6.System integration: PCB buffer machines can be integrated with other equipment and production lines to form a complete automated production system. It is usually used in conjunction with PCB assembly equipment, printing machines, welding equipment, etc.
Features
1. Use friendly soft touch LED membrane control panel.
2. FIFO,LIFO,Loader, Unloader,Reject mode selected.
3. Fast, smooth and precise indexing.
4. Pneumatic clamps provided for magazine alignment.
5. Pneumatic pusher’s pressure regulated.
6. Threshold’s system provided.
7. Additional magazines buffering capacity available upon request.
8. SMEMA compatible.
Technical details
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Board cycle time | Approx 20 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 10L/min |
| Number of magazines | Upper:1 magazine, Bottom side:1 magazines |
| Signal | SMEMA |
| Options | 1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
Specification
| Model | HS-HC250S | HS-HC330M | HS-HC390L | HS-HC460XL |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1250*1200*1600mm | 1460*1360*1600mm | 1610*1480*1600mm | 1610*1620*1600mm |
| Weight | 170kg | 230kg | 300kg | 330kg |
