| Brand Name: | HSTECH |
| Model Number: | HS-CVN350 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

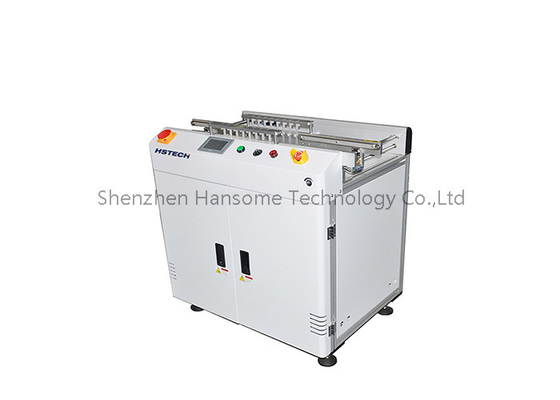

Select 5pcs PCB 100VA MITSUBISHI PLC Sick Sensor PCB Reject Conveyor
Introduction
This unit provide the OK and NG board selection function on the smt production line. It can be used when visual inspection of PCBs required. PCBs will continue to run, thus without interrupting the normal PCBs flow.
Specification
| Model | HS-CVN350 | HS-CVN460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 1000*690*930mm | 1000*800*930mm |
| Weight | 70kg | 90kg |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L(optional) |
| Transporting speed | 0.5~20 m/min or specify |
| Power supply | AC100-230V,50/60Hz,single phase |
| Power consumption | 100VA max |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| Communication | SMEMA |
Features
1, Reject, inspect and by-pass modes all available.
2, Modular design.
3, Stability enhanced by robust design.

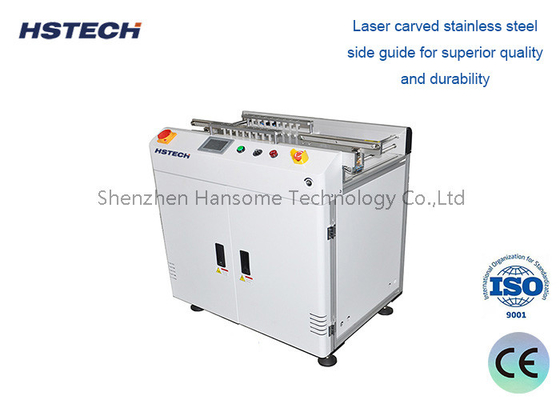

4, Laser carved stainless steel side guide for superior quality and durability.
5, Ergonomic design arm rest.
6, Smooth and parallel width adjustment(lead screw).
7, Different lengths available upon request.
8, Variable speed control.
9,SMEMA compatible.
Transporting rail
Lifting Sturcture
Electric control
We have more than 10 years' professional SMT industry experience. With strict production,inspectiondebugging and packaging process, we insist on providing clients with good service pre-sales, in-salesand after-sales services. We have professional QC person to check the quality of the equipment andspare parts. After manufacturing, all equipment will be carefully tested and debugged before shipment.
