| Brand Name: | HSTECH |
| Model Number: | HS-460BC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

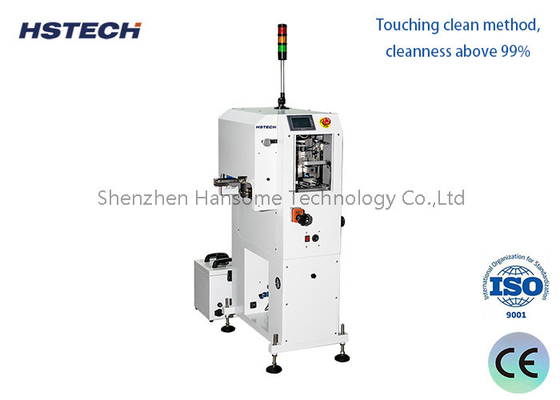

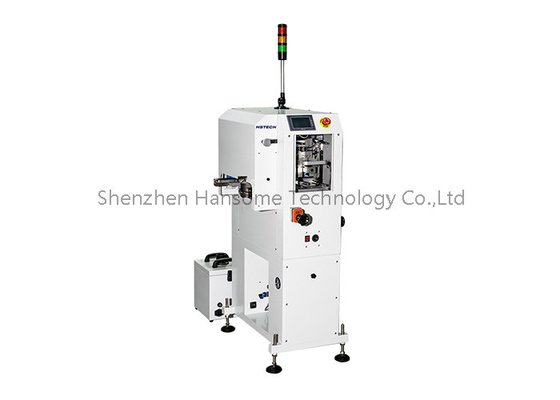

Easy To Install Disassemble Ultra Sound Cleaner Multiple Sizes PCB Cleaning Machine HS-460BC
Introduction
This machine is used between PCB loader and screen printer, with brush and sticker roller to clean the dust,electricity static on the surface of the PCB.
Specification
| Model | HS-250BC | HS-330BC | HS-390BC | HS-460BC |
| PCB dimension | (50*50)~(350*250) | (50*50)~(460*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Machine dimension | 555*820*1350 | 555*900*1350 | 555*960*1350 | 555*1030*1350 |
| Weight | 80kg | 90kg | 100kg | 110kg |
| PCB thickness | 0.4~5mm |
| Power supply | AC100~230V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| Cleaning brush | top 2 pcs |
| Sticker roller | top 1 pc |
| Brush | ESD,high precision brush |
| If with dust collector | Yes |
| Transport speed | 0~9m/min,adjustable |
| Transport height | standard 900±20mm |
| Direction | L to R, or R to L,optional |
| Cycle time | Around 8s |
Features
1. Ultra high speed anti-static spiral brush, vacuum cleaning method.
2. Special corresponding SMT printing, clean up foreign objects on the back of the AI plugin PCB board before and after installation.
3. Equipped with static elimination function, completely eliminating static interference.
4. Touch cleaning method, with a cleanliness rate of over 99%.
5. Designed for cleaning drums to ensure efficient, stable, and long-lasting cleaning results.
6. Mechanical parts with pull-out design, easy to maintain.
7. The interface is displayed in both Chinese and English, and the interface operation is convenient and simple.
About Packaging
COMPANY PROFILE
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer, We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of sMT/THT production line board handling equipment.We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same time,our experienced engineering team always grasps smart factory's developing directionupdates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
