| Brand Name: | HSTECH |
| Model Number: | HS-SP-4N |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

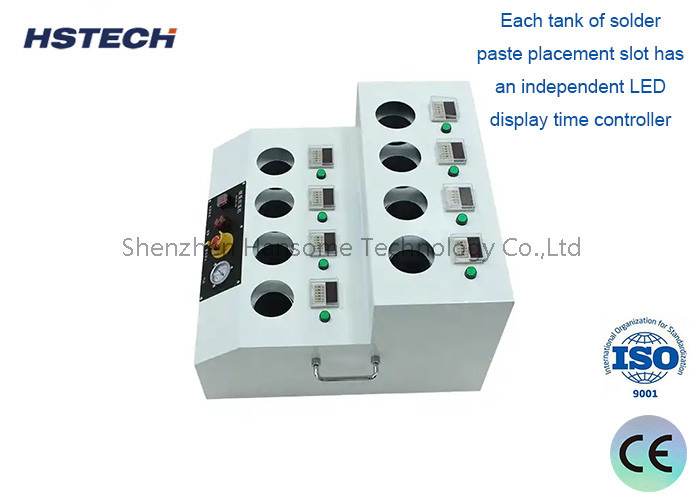

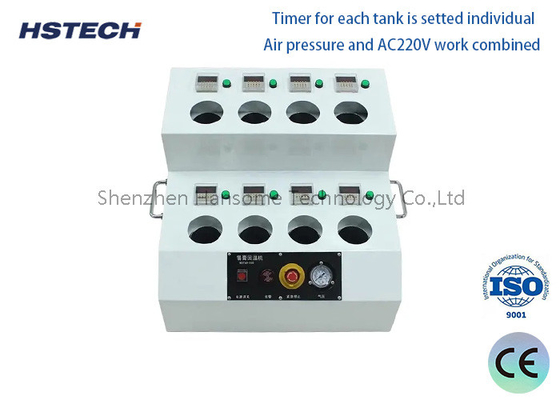

LED Display 4 Placing Tank Solder Paste Machine Solder Paste Warm Up Machine
Introduction
Solder paste check right machine, also called solder paste warm up machine, and solder paste aging machine, with the timer, the machine can easily achieve the control of the solder paste temperature warm up time, which can save much time to record the time of solder paste back to the ambient temperature after take out off the refrigerated room. It is a efficiency way to control the temperature of the solder paste, make sure the activity of the solder paste, ensure the printing quality, better to control the production plan, improve production efficiency.
SMT manufacturers usually store solder paste in sealed and refrigerated refrigerators to meet quality assurance requirements. The solder paste is usually refrigerated at a temperature of 0-10 degrees Celsius and sealed to prevent oxidation. The solder paste needs to be tempered before use. Usually the tempering time is about 4 hours. The purpose is to restore the activity of the refrigerated solder paste and make it easier to use.
Our solder paste rewarming machine is an intelligent management device that integrates solder paste refrigeration storage, rewarming, stirring, traceability and direction traceability functions. The refrigeration temperature can be controlled within the range of 1-10 degrees Celsius, and the temperature can be controlled through numbers and temperature. Curve monitoring and recording, first in first out, to meet the storage and use requirements of different solder pastes.
The reheating function of the solder paste reheating machine can control the reheating temperature at 18°-28°. Users only need to set the reheating temperature according to different types and uses to ensure that the reheated solder paste can be used with Room temperature remains consistent. The reheating method of our solder paste reheating machine is mainly controlled by the exhaust fan, rather than the heating mode, which will not affect the quality of the solder paste after reheating.
In order to meet different usage scenarios, our solder paste reheating machine has three modes: automatic reheating of solder paste, manual scheduled rewarming, and recuperation by receiving MES work orders to ensure that it can be used right out of the box every time. , greatly improving production efficiency.
Features
| Model | HS-SP-4N | |||
| Control system | PLC | |||
| Assemblying parts | Import parts | |||
| Power | AC220V, 50Hz | |||
| Air Pressure | 0.4Mpa | |||
| Placing tank | 4 tanks | |||
| Machine Demension | 500*300*220mm(W*D*H) | |||
| Gross Weight | 16KG | |||
Steps
1. After debugging, turn on the power.
2. Place the tin tin can to be warmed up into the grooved fixture.
3. Please turn on the corresponding power supply after the tin incubation has returned to temperature and wait for it to return to temperature.
4. Adjust the time setting on the panel to a better temperature recovery time;
5. After pressing the power switch, the solder paste will automatically sink. The machine begins to warm up until the tin pops out after completion.
5. After use, turn off the power switch;
6 things to note
7. In case of power outage, if the set time is not reached, the tin bottle will not be able to be taken out.
8 .Please keep the machine clean;
9. Check that all screws are not loose;
10. Check the main power switch of the machine before returning to temperature;
