| Brand Name: | HSTECH |
| Model Number: | HS-460-CY |
| MOQ: | 3 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
PCB Handling Equipment Stable Stainless Steel Manual Hand Crank Width Adjustable Conveyor
The connecting table is suitable for the connection between SMT and AI production lines, and can also be used for PCB buffer, inspection, testing or manual insertion of electronic components, and can be connected with other equipment to make signals. Double screws adjust the track width conveniently and accurately, equipped with anti-static table board.
Features

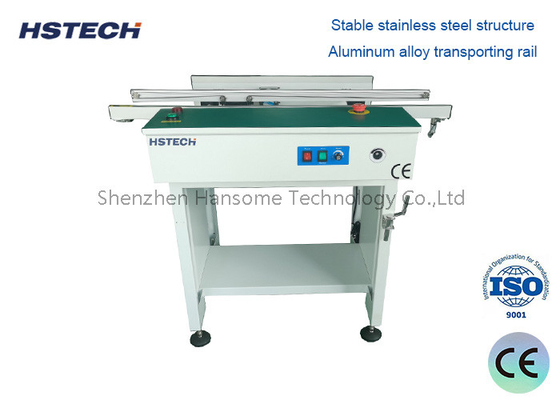

1, Stable stainless steel structure.

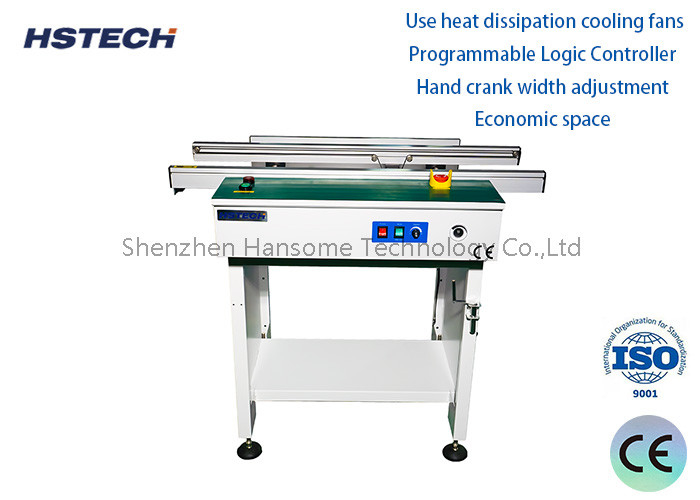

2, Hand crand width adjust.
3, Black transpoting belt, 1.0mm thickness.
4, Aluminum alloy transporting rail.
5, LED button control, speed adjustment motor.
6, Optional function available, tower light, inspection, dust cover, etc.
7, Customized requirement available.
8, Length available, 600mm, 1000mm, 1500mm, or optional.
9, SMEMA signal for inline connection.
Specification
| Model | HS-C600/HS-C1000 | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
Functional:
1. Precision SUS304 M-shape wire rod, hand cranked width adjustment system. Ensure that the two conveying tracks run parallel and smoothly.
2. round imported belts and patented track, to solve the PCB board in the process of conveying slot problems, improve the stability of PCB board conveying.
3. stability.
4. Standard configuration industry standard signal: SMEMA, can be online with other equipment to achieve automation. 5.
5. the frame is made of thickened square or aluminium profile material, the selection of materials, timely and firm, durable.
6. Suitable for SMT or Al production line, easy to link the front and rear section equipment.
7. The bottom weighted so that the machine is not easy to be moved, and the smoothness of the connecting table is more guaranteed.
8. with lighting device model, equipped with a frame for placing work instructions, comes with anti-static testing or hand-held parts and simple maintenance work platform.
9. Single maintenance working platform.
10. with cooling system greatly reduces the temperature of PCB boards and components from the furnace, solving the PCB board overheating problems caused by the process.
Solve the problems caused by PCB overheating.
