| Brand Name: | HSTECH |
| Model Number: | HS-M535 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pcs per month |

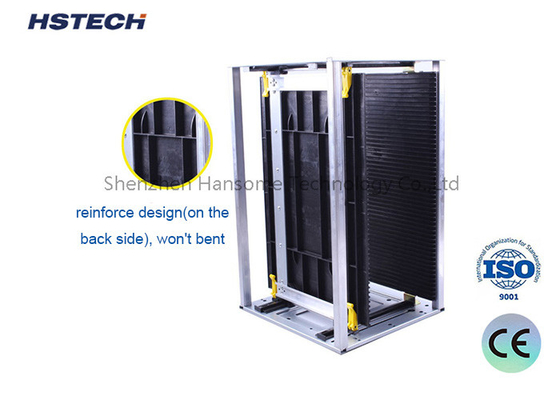

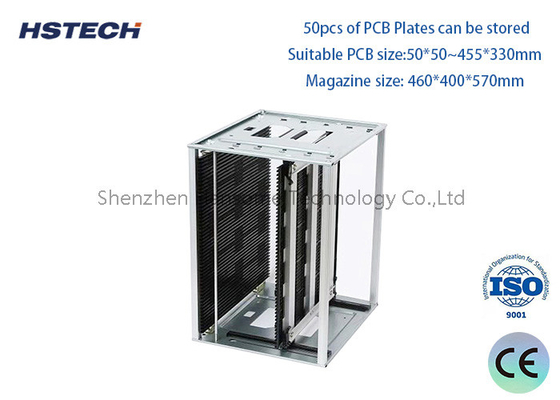

Anti-Static PCB Handling Equipment Storage ESD Magazine For Streamlined PCB Transportation
Introduce
Anti-static SMT loading and unloading rack. It is also called electrostatic frame, anti-static PCB storage turnover rack, PCB board turnover box, etc. in the market. The anti-static SMT loading and unloading rack is widely used in automatic loading and unloading machines. It is acid and alkali resistant, oil resistant, high temperature resistant, non-toxic and odorless. It can be used to hold PCB boards. It is easy to clean. The circuit boards are easy to turn around, stacked neatly and easy to manage. With its reasonable design and excellent quality, Rongxin anti-static SMT loading and unloading racks are suitable for transportation, distribution, storage, circulation and processing in factories.
Features
1, This product is used for PCB loader and unloader machine, collect,transport and store the PCBs in the warehouse or production room.
2, Top and bottom part using drable metal material panel, ensure the whole structure stable.
3,, The whold rack is anti-static design, max can store 50pcs PCBs.
4, Width can be adjusted via gear and fixed by the clip.
5, The rack is Non-toxic, odorless, moisture-proof, corrosion-resistant, durable,also can be stackable.
6, Stable structure, wont bent during operation, the racks also high temperature resistance.
7, Easy to install and disassembly, convenient for replacement and maintenance.
Specification
| Overal size | 535*460*565mm,also has other options |
| Suitable PCB size | 50*50~530*390mm |
| PCB storage capacity | Max 50pcs |
| Side guid slot | Depth 3.0mm, width 5.0mm, pitch 10mm |
| Surface resistance | 105Ω-109Ω |
| Heat-resistance | 80 °C/120°C/200°C |
| Width adjustment | Gear Tracker / clips |
| Top and bottom base panel | Metal material |
| Type | Anti-static |
| Single weight | 5kg |
Usage
Anti-static SMT loading and unloading rack is also called PCB collection box. It is widely used in automatic loading and unloading machines. It is acid and alkali resistant, oil resistant, high temperature resistant, non-toxic and tasteless. It can be used to hold PCB boards. It is easy to clean and circuit board turnover is convenient. , stacked neatly for easy management. Its reasonable design and excellent quality are suitable for transportation, distribution, storage, circulation and processing in factories. SMT loading and unloading racks can be matched with a variety of logistics containers and workstations, and are used in various situations such as warehouses and production sites. Today, when automatic loading and unloading machines are increasingly valued by enterprises, SMT loading and unloading racks help complete the task. The circulation, storage and integrated management of PCB boards are essential for modern production management of production and external processing enterprises.
