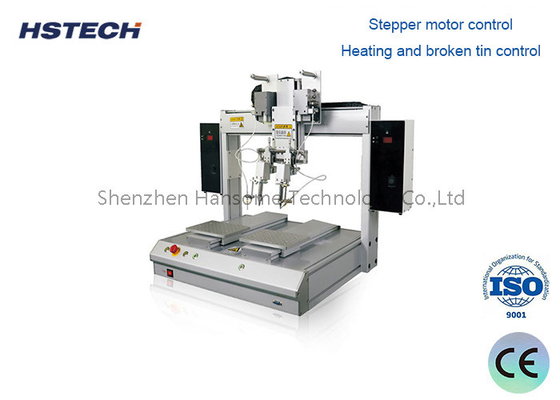

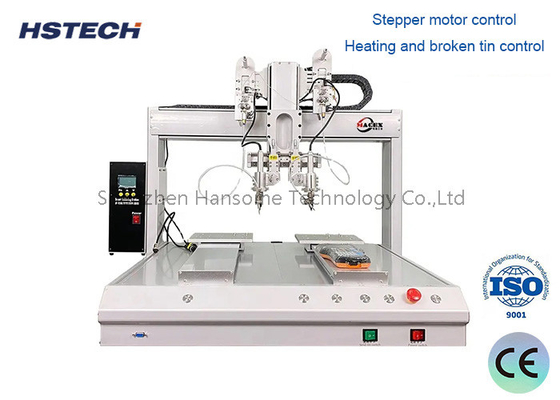

Dual Platform Dual Soldering Heads 4Axis Automatic Soldering Robot With X/Y/Z and R Rotation Moving

Dual Platform Dual Soldering Heads 4Axis Automatic Soldering Robot With X/Y/Z And R Rotation Moving

Introduce

The soldering machine is a mechanical equipment equipped with a large transparent window that allows the entire welding process to be observed. It plays a very important role in product development and process curve optimization. The temperature control adopts a high-precision intuitive intelligent controller with programmable perfect curve control, precise temperature control, simple parameter setting and easy operation. Can complete single and double-sided PCB board welding in all package forms such as CHIP, SOP, PLCC, QFP, BGA, etc.
The soldering machine changes the practice of soldering machines that can only rely on natural cooling or pulling out the PCB board for cooling outside the soldering machine. It makes the reflow soldering process curve more perfect and avoids surface mount device damage and soldering shift problems.

Features

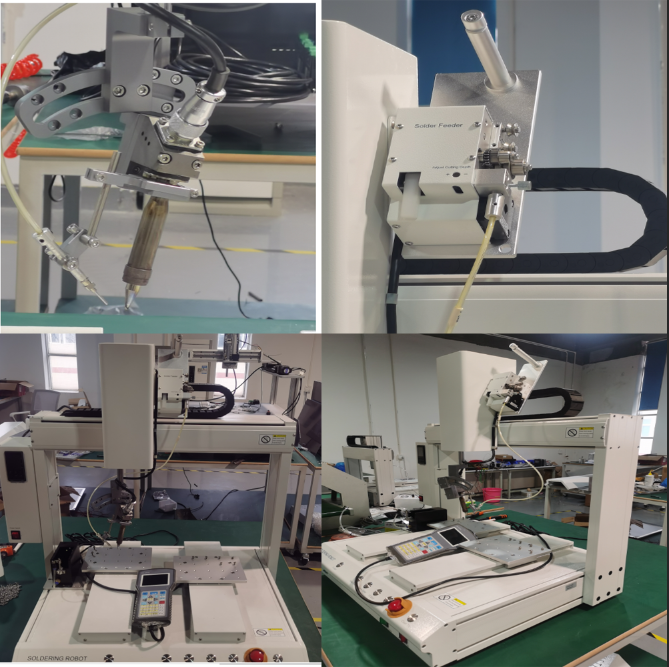

1, It's 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The machine has automatic cleaning function, the soldering iron/tip without nitrogen, very safety and environment protective,

3, Taiwan brand Hiwin linear guide used in the machine moving system, high precision and high accuracy.

4, Using very mature control board to make the machine control system, also available for using PLC.
5, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
6. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

8, With the handheld LCD teaching pendant, the programming is simple,high precision and easy to learn.

Specification

Classification

Automatic soldering machine
The automatic soldering machine is fully adjustable in three dimensions, so that the soldering iron and tin wire do not require the hands of a fake operator. It completely replaces your hands, and the arms can be adjusted to any soldering position you want. Automatic tin feeding system: You only need to lightly step on the foot switch, and the tin wire will be automatically extended to the soldering iron tip at a constant speed and quantity.

Hot air soldering machine
The hot air soldering machine adopts a highly reliable metal anti-static mode design, which makes welding sensitive components safer. The perfect combination of two arms, three-dimensional space, and any adjustment of the all-round tin supply duct. The tin supply is easy to control. Novices can save 50% of manpower in two hours if they are proficient. Perfect transfer of welding technology, light and flexible, does not take up space. This soldering machine is especially suitable for welding and docking of various electronic connectors, video and audio cable plugs, headphone cables, computer data cables, small circuit boards and small electronic components in the middle of the wire harness. .

Lead-free reflow soldering machine
Lead-free reflow soldering machine replacement of lead soldering is the development trend of equipment in the electronics industry. Environmentally friendly lead-free reflow soldering features: ergonomic design, suitable for soldering SMT and plug-in components, and meets the requirements of lead-free soldering workers. Automatically adjust spray area, closed-loop control, electronic speed regulation. WIN95/98 Chinese and English operating system, convenient human-computer dialogue and friendly interface.

Why Choose a Dual Soldering Machine?

The Dual Soldering Machine is the ultimate solution for electronics manufacturers seeking flexibility, precision, and efficiency in their soldering processes. By integrating wave soldering and selective soldering capabilities, this machine streamlines production, reduces costs, and ensures high-quality solder joints for a wide range of PCB assemblies. Whether you're producing consumer electronics, automotive systems, or industrial controls, the Dual Soldering Machine is a reliable and future-proof investment.
