SMEMA Signal Vertical Buffer With Double Checking NG PCBs For PCB Handling Equipment
Description
This PCB Handling Equipment is used as a buffer between SMD machine and Inspection equipment.
There are many different kinds of intelligent production equipment on the SMT production line. If a piece of equipment causes the production efficiency to be out of sync and unstable due to technical reasons; or due to an alarm failure in the automated detection of the production line, the PCB on some production lines will be damaged. There is congestion in production and transmission. At this time, a PCB storage machine is needed to temporarily solve this problem. The function of the PCB board storage machine is that when PCB boards are over-supplied in a certain part of the production line, the PCB boards can be temporarily stored in the board storage machine; when there is insufficient "supply" in a certain part, the board storage machine Release the stored PCB board to provide the PCB board for processing in the next process. The function of the PCB storage machine is to serve as a link between the previous and the following and achieve buffering.
Features

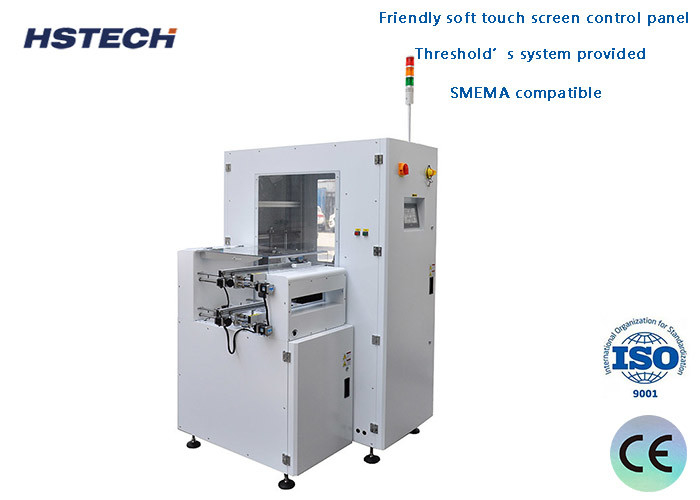

1.Use friendly soft touch screen control panel.
2.FIFO,LIFO,Loader, unloader,Reject mode selected.
3. Fast, smooth and precise indexing.
4.Inner PCB rack to stock PCBs,Max can stock 25pcs PCBs.
5. Machine Panel will show NG or OK PCB for each layer.
6.Upper conveyor platform for double checking NG PCBs.
7. Threshold’s system provided.
8. SMEMA compatible.
Technical details
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Board collecting | Lifting PCB rack |
| Conveyor transporting speed | Adjustable |
| Rail fixed side | Front side or rear side |
| Operation side | Front side |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| PCB stock capacity | Max 25pcs |
| Magazine | No |
| Signal | SMEMA |
| Options |
Automatic width adjustment.
|
Specification
| Model | HS-HC250 | HS-HC330 | HS-HC390 | HS-HC460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1250*1200*1600mm | 1460*1360*1600mm | 1610*1480*1600mm | 1610*1620*1600mm |
| Weight | 200kg | 230kg | 270kg | 300kg |
Operation Diagram
Why use a fully automatic caching machine?
The production equipment on the entire SMT production line is provided by many manufacturers. The working efficiency and stability of these equipment are different, and they do not have a unified efficiency standard. Although the PCB production rate will be evaluated when designing the SMT production line, there are still some uncertain factors. Therefore, in order to avoid unstable factors affecting the entire production line, you can consider setting up cache machines before and after some equipment.
