| Brand Name: | HSTECH |
| Model Number: | HS-460BC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

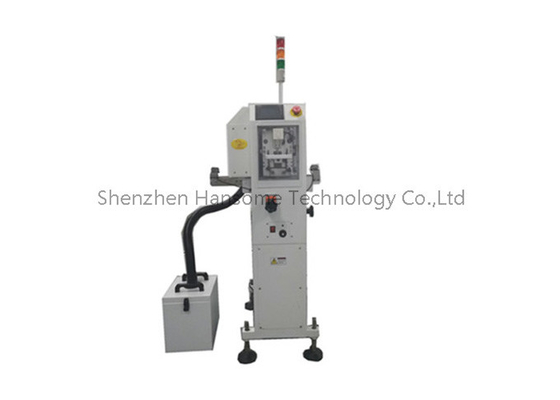

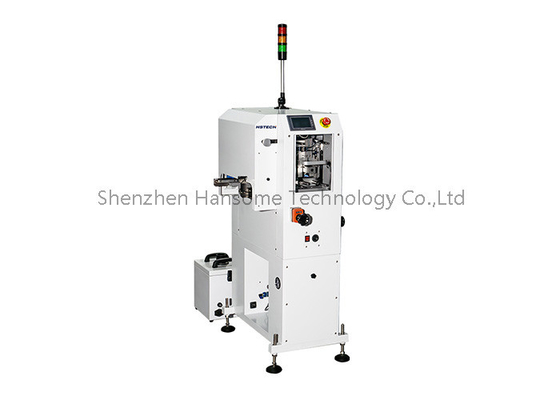

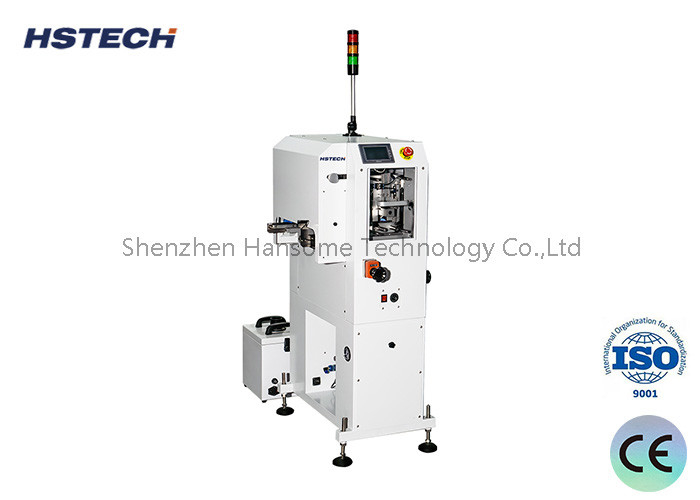

PCB Handling Equipment with Brush Sticker Roller PCB Cleaning Machine
Introduction
This In-line PCB Surface clean machine used for PCB before printing solder paste and red glue to remove surface small chip , dust,fiber,hair,skin debris and metal particles etc.other things.Eliminate PCB board static to reduce the bad printing and foreign object caused cold welding ,missing weld,camber and deflection welding, improve products quality .Greatly reduce rework and bad quality return rate.Especially suitable for place 0402,0201etc small components and QFP,BGA,CSP precision components.
Specification
| Model | HS-250BC | HS-330BC | HS-390BC | HS-460BC |
| PCB dimension | (50*50)~(350*250) | (50*50)~(460*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Machine dimension | 555*820*1350 | 555*900*1350 | 555*960*1350 | 555*1030*1350 |
| Weight | 80kg | 90kg | 100kg | 110kg |
| PCB thickness | 0.4~5mm |
| Power supply | AC100~230V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| Cleaning brush | top 2 pcs |
| Sticker roller | top 1 pc |
| Brush | ESD,high precision brush |
| If with dust collector | Yes |
| Transport speed | 0~9m/min,adjustable |
| Transport height | standard 900±20mm |
| Direction | L to R, or R to L,optional |
| Cycle time | Around 8s |
Features
1, According to the SMT production line requirements develop and design equipment.
2, PLC control system.
3, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
4, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
5, Equipped with the Keyence brand static climinators, completely eliminate electrostatic interference.
6, Touching clean method, cleanness above 99%.
7, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.
8, Mechanical parts draw-out design, maintenance is simple.
9, Interface display in English and Chinese, interface operation convenient and simple.
10, SMEMA signal compatible.
