| Brand Name: | HSTECH |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
Solder Paste Rewarming Machine with Multiple Slots and Imported Electrical Components
Introduction
Automatic solder paste thawing machine, also called solder paste aging machine, with the timer, the machine can easily achieve the control of the solder paste temperature warm up time, which can save much time to record the time of solder paste back to the ambient temperature after take out off the refrigerated room. It is a efficiency way to control the temperature of the solder paste, make sure the activity of the solder paste, ensure the printing quality, better to control the production plan, improve production efficiency.
Features
1. Fully automatic timed solder paste rewarming machine. One machine has multiple slots and can intelligently reheat multiple cans of solder paste at the same time to ensure the activity of the solder paste; the steel plate of this machine has a baked-painted appearance, with a smooth and tidy surface, fashionable and beautiful.
2. The machine is assembled and produced using imported electrical components.

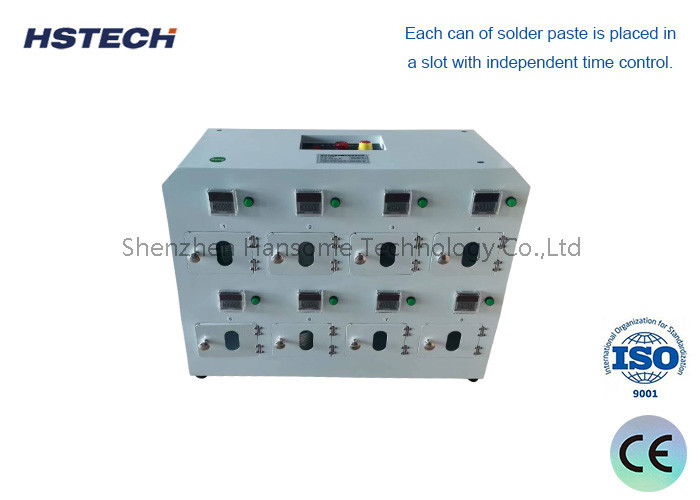

3. Each can of solder paste is placed in a slot with independent time control. Once the time is set, the solder paste slot will automatically lock. The door cannot be opened before the timer expires. When the set temperature recovery time is reached, the slot will be locked. It will unlock automatically.
4. The machine can be operated with multiple tanks for temperature recovery, and each slot can hold 500G solder paste tanks.
| Model | HS-SP-10N | |||
| Control system | PLC | |||
| Assemblying parts | Import parts | |||
| Power | AC220V, 50Hz | |||
| Air Pressure | 0.4Mpa | |||
| Placing tank | 10 tanks | |||
| Machine Demension | 500*300*220mm(W*D*H) | |||
| Gross Weight | 16KG | |||
| Machine name | Fully automatic solder paste reheating machine | product brand |
| Operating mode | voltage mode | Product net weight: 16kg |
| Operating Voltage | AC220V 60HZ | Product material: steel plate spray paint |
| Product Size |
Four slots L670*W220*H335mm Tank size: length 150*depth 100*height 110mm |
|
| Ability to work | The solder paste and red glue reheating machine/defrosting machine can be used with solder paste in the slot and needle-type red glue (all small red glue with a total length of less than 120MM can be used), and the solder paste and red glue can be switched intelligently. New and old customers can choose from 4/5/6/8/10/12/14 workstations to 30 workstations. Non-standard can be customized. Supports 250G/500G solder paste, total length less than 120MM needle tube red glue. | |

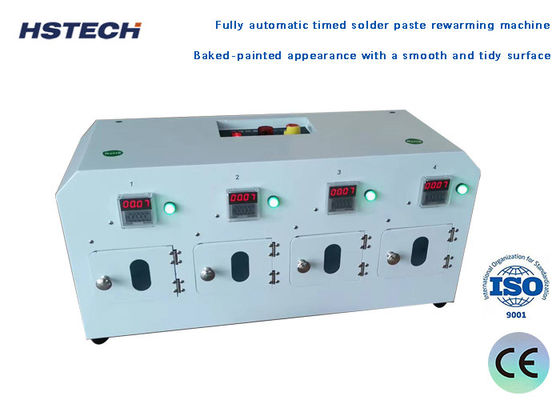

Product physical picture
About Us:
Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.
HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.
