| Brand Name: | HSTECH |
| Model Number: | HS-P223 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

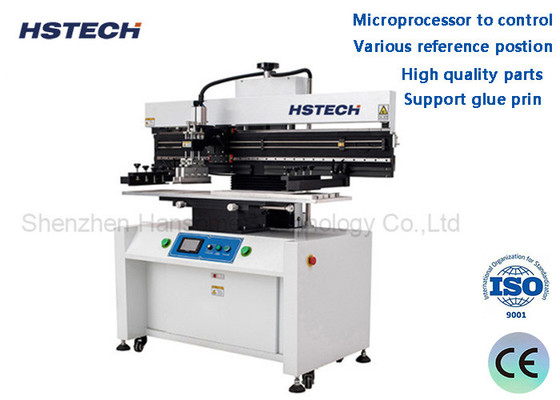

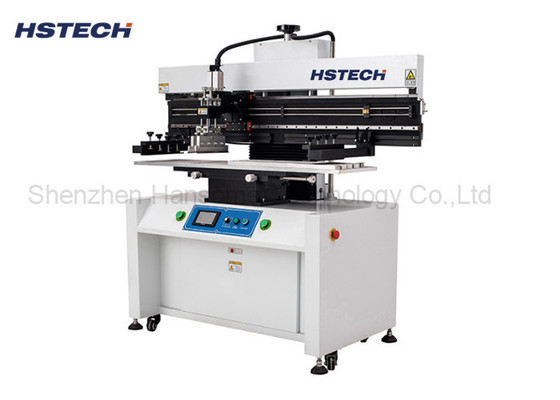

Touch Screen Semi-auto 1.2M Screen Printer for Printing the 1.2meter LED Tube PCB
Introduction
This unit solder paste printing machine is used for printing the 1.2meter LED tube PCB, it's semi-automatic machine, manul loading, automatic printing, it's used before the pick and place machine.
Specification
| Model | HS-P223 |
| Product name | Semi-automatic stencil printer |
| Max PCB size | 1200x320mm |
| Printing table size | 1300x350mm |
| Stencil frame size | 470x370~2000x550mm |
| Printing accuracy | ±0.02mm |
| PCB thickness | 0.2~2.0mm |
| Squeegee speed | 0-100mm/s |
| Repeat accuracy | ±0.02mm |
| Power supply | AC220V/110V, 50/60Hz |
| Machine power | 100W |
| Air pressure | 5-7kg/cm³ |
| Machine size | 1680*900*1680mm |
| Machine weight | Approx350kg |
Features
1, Special design for 1.2meter LED tube, T8 or T5.
2, Touch screen control panel, easy operation and stable.
3, Using Delta smooth drving frequency inventor to ensure more stable scraper speed.
4, Flexible double-blade suspended squeegee, the sueegee can be adjusted up and down to the right position.
5, The scraper printing table also can be adjusted, froth or back.
6, Using SMC Cylinder, position seal adopt shaped two-way sealing structure, good performance.
7, High precision printing and repeating accuracy.
8, Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.
9, The machine also support glue printing, improve efficiency and save cost.
