| Brand Name: | HSTECH |
| Model Number: | HS-460BC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
ESD High Precision Brush PCB Surface Dust Cleaner L to R or R to L Optional
Introduction:
The PCB Surface Dust Cleaner is an essential tool in the electronics manufacturing industry, specifically designed to remove dust, debris, and contaminants from the surface of Printed Circuit Boards (PCBs). Ensuring a clean PCB surface is critical for maintaining high-quality solder joints, preventing defects, and enhancing the overall reliability and performance of electronic assemblies.
Features:
1, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
2, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.

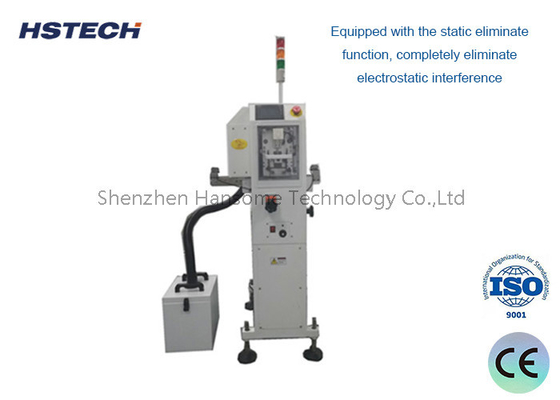

3, Equipped with the static eliminate function, completely eliminate electrostatic interference.

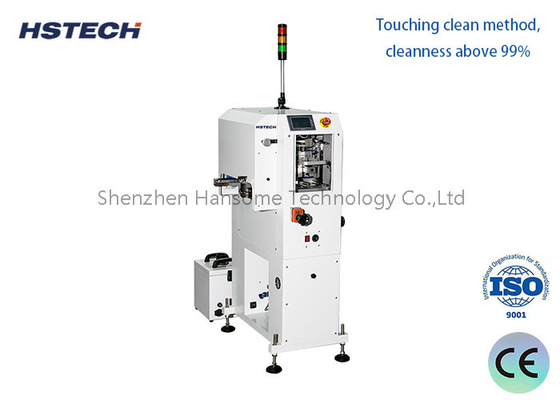

4, Touching clean method, cleanness above 99%.
5, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.
6, Mechanical parts draw-out design, maintenance is simple.
7, Interface display in English and Chinese, interface operation convenient and simple.
Specification:
| Model | HS-250BC | HS-330BC | HS-390BC | HS-460BC |
| PCB dimension | (50*50)~(350*250) | (50*50)~(460*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Machine dimension | 555*820*1350 | 555*900*1350 | 555*960*1350 | 555*1030*1350 |
| Weight | 80kg | 90kg | 100kg | 110kg |
| PCB thickness | 0.4~5mm |
| Power supply | AC100~230V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| Cleaning brush | top 2 pcs |
| Sticker roller | top 1 pc |
| Brush | ESD,high precision brush |
| If with dust collector | Yes |
| Transport speed | 0~9m/min,adjustable |
| Transport height | standard 900±20mm |
| Direction | L to R, or R to L,optional |
| Cycle time | Around 8s |
Applications:
Pre-SMT Cleaning: Prepares PCB surfaces before solder paste printing and component placement.
Post-Reflow Cleaning: Removes flux residues and contaminants after the soldering process.
Rework and Repair: Cleans PCBs during repair or rework processes to ensure proper adhesion and functionality.
General Maintenance: Keeps PCBs clean during storage or assembly to prevent contamination.
Why Choose a PCB Surface Dust Cleaner?
In the highly precise world of electronics manufacturing, even the smallest particles can lead to significant issues. The PCB Surface Dust Cleaner ensures that your PCBs are free from contaminants, enabling optimal performance and reliability. Whether you're working on consumer electronics, automotive systems, or industrial controls, this tool is an indispensable part of your production process.
