| Brand Name: | HSTECH |
| Model Number: | HS-S331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

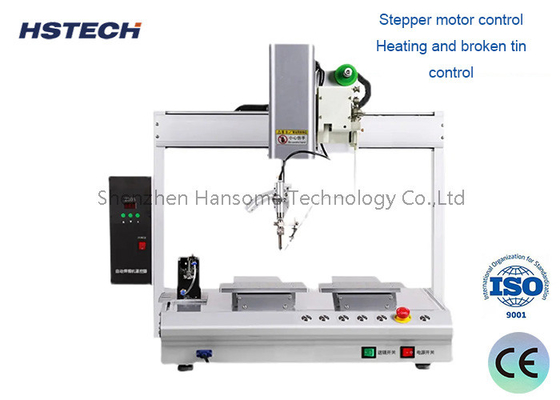

Dual Platform Tabletop Soldering Machine with Max 300mm/s Driven System
Introduction:
This automatic soldering machine with dual soldering table, single soldering head but with two soldering iron, so it has two temperature controller, but it without Rotation function. This model suitable for soldering regular PCB board or production, dual soldering iron working at the same time, great improve the soldering efficiency. The machine adopt the air pressure and electricity driven, through the teachpant box for manual programing each points, then start the automatic soldering.
Features:
1, Dual soldering table, single moving head but with dual soldering irons.
2, Each soldering iron has a individual temperature controller.
3, The soldering iron without nitrogen, very safety and environment protective,
4, The soldering head can be tilt by choosing a radian fixture,so the head can do themulti-directionally adjusted, which can protect the PCB and components from damage.
5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
7, With the handheld teaching pendant, the programming is simple and easy to learn.
Specification:
| Model | HS-DS5331 |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 500*300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |

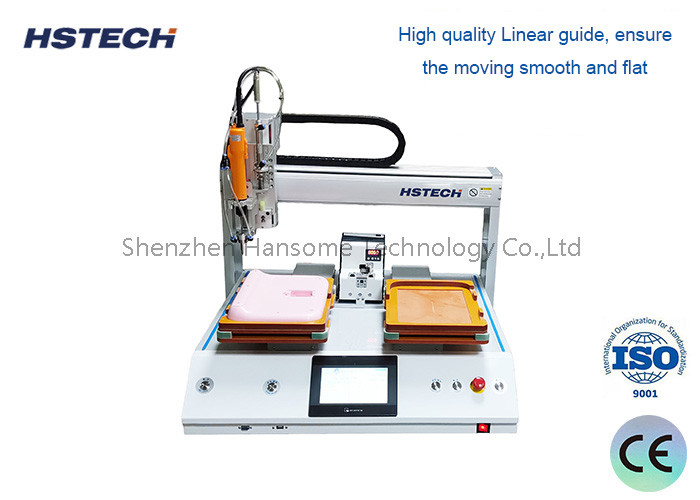

| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension | 600*585*800mm |
